Tube thimbles with master link is heavy duty galvanized synthetic rope thimble with master links for heavy marine mooring use, the spare gussets are available if needed for special mooring.
| Quantity: | |
|---|---|

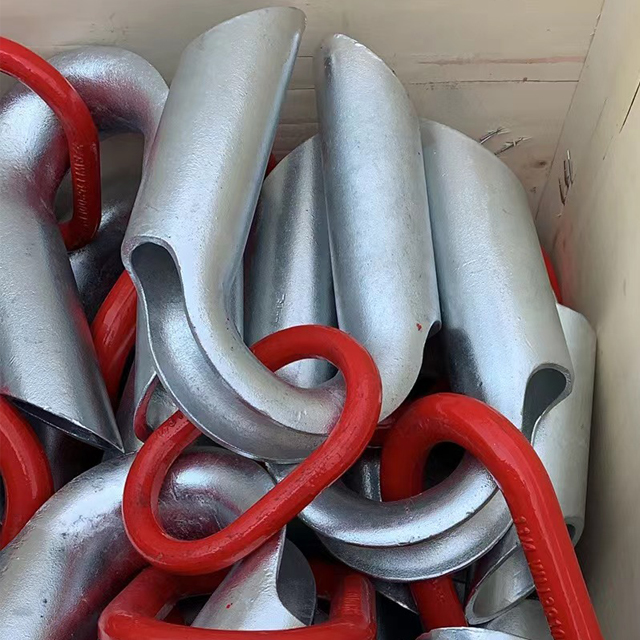

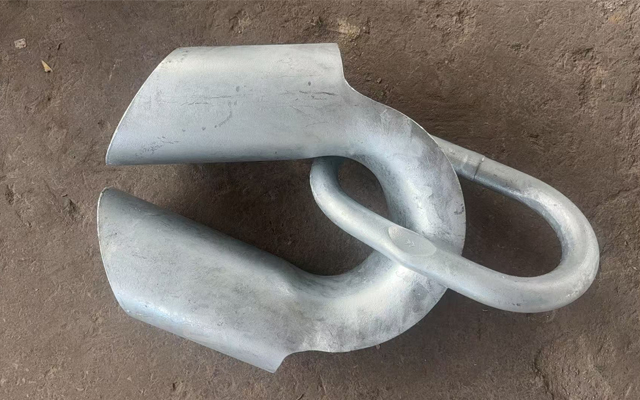

Tubular Thimble With Master Link Assembly
Description:
Tubular thimble and master link assembly is indeed widely used in rope mooring applications. These components play a vital role in providing safe and secure connections to ropes used in mooring operations, such as securing boats, ships and other vessels to docks, buoys or anchors.
The tubular thimble is used to protect the rope from wear at the connection point, while the master link assembly provides a strong and reliable connection point for the rope. This combination ensures that the mooring system can withstand the forces exerted by the vessel and the surrounding environment, providing stability and safety.
When selecting a tubular pin and main link assembly for use in rope mooring, it is important to consider factors such as the size and type of rope, working load limitations, and the environmental conditions in which the mooring system will be used. Proper installation and regular inspection of these components are critical to ensuring the safety and effectiveness of the mooring system.
The Thimble + Master link has been Pre-fabricated together, providing easy handling in splicing.
Material: Mild steel
Finish: Galvanized according to ISO1461
Temperature range: -20°C up to +200°C
Standard certification: NS9415
Suitable for fibre rope
Tubular Thimble Specification:
| Max Rope Dia. | Total Length | Reel Height | Inner Width(mm) | Material Thickness | Weight (kg) |
| 20mm | 180mm | 25mm | 45mm | 6mm | 1.4 |
| 24mm | 195mm | 30mm | 47mm | 7mm | 2 |
| 28mm | 215mm | 35mm | 60mm | 7mm | 2.4 |
| 32mm | 240mm | 40mm | 65mm | 7mm | 3.1 |
| 36mm | 280mm | 50mm | 75mm | 7mm | 4.06 |
| 40mm | 298mm | 55mm | 85mm | 7mm | 5.95 |
| 44mm | 308mm | 60mm | 86mm | 7mm | 6.85 |
| 48mm | 312mm | 65mm | 88mm | 7mm | 7.2 |
| 56mm | 332mm | 70mm | 90mm | 7mm | 7.6 |
| 64mm | 342mm | 75mm | 94mm | 7mm | 8.3 |
| 72mm | 450mm | 88mm | 130mm | 10mm | 20.11 |
| 80mm | 500mm | 94mm | 150mm | 10mm | 24.85 |
| 92mm | 550mm | 107mm | 190mm | 10mm | 30.43 |
| 96mm | 600mm | 112mm | 200mm | 14mm | 50.4 |
| 104mm | 650mm | 120mm | 220mm | 16mm | 68.8 |
| 115mm | 750mm | 140mm | 240mm | 20mm | 110 |
Regular Demand Size:
Rope Thimble Size mm | Master Link MBL T |
40 | 25.8 |
48 | 34 |
56 | 43.2 |
64 | 51.7 |
72 | 85.3 |
Application:
Tubular thimble with master link assembly is commonly used marine mooring lines.
Fish Farm Grids:
Thimbles protect rope connections between cages and anchor lines.
Master links join multiple mooring lines to a single anchor block.
Kelp Longlines:
Polymer-coated thimbles prevent biofouling on suspension ropes.
Master links enable modular grid expansion or contraction.
Platform Anchoring:
Thimbles secure HMPE ropes to deadweight anchors on lakebeds.
Master links connect arrays of floating panels to centralized mooring points.
Quick-Release Systems:
Thimbles integrated with synthetic ropes reduce wear during frequent docking.
Master links provide a unified connection point for fenders, ropes, and winches.
Barge Tie-Downs:
Thimbled ropes attach to bollards or cleats, minimizing chafing.
Master links consolidate lines from multiple vessels to shared dock anchors.
