G80 A343 Master Link With Flat
When it's used in marine and aquaculture mooring system, the master link is coupled with rope thimble, we call it thimble and master link assembly. It will be spliced at the terminal of ropes, the steel thimble can protect the rope from wearing out, and the master link can be easily connection with other mooring components, like anchor chain, mooring connection plate by shackles. Please pay attention to the WLL and BL, when choose the size of master link, they should be in corronsponding with the load capacity of the whole mooring system.
Specifications:

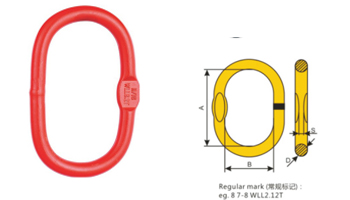

SIZE(mm) | WEIGHT(kg) | WLL(T) | DIMENSION(mm) | ||
A | B | D | |||
7 6-8 | 0.41 | 1.6 | 110 | 60 | 14 |
8 7-8 | 0.54 | 2.12 | 110 | 60 | 16 |
10 8-8 | 0.83 | 3.15 | 135 | 75 | 18 |
13 10-8 | 1.5 | 5.3 | 160 | 90 | 22 |
16 13-8 | 2.32 | 8 | 180 | 100 | 26 |
18 16-8 | 3.96 | 11.2 | 200 | 110 | 32 |
20 18-8 | 6.34 | 14 | 260 | 140 | 36 |
22 20-8 | 8.97 | 17 | 300 | 160 | 40 |
26 22-8 | 12.83 | 21.2 | 340 | 180 | 45 |
32 26-8 | 16.57 | 31.5 | 350 | 190 | 50 |
36 32-8 | 23.3 | 45 | 400 | 200 | 56 |
40 36-8 | 32.1 | 56 | 430 | 220 | 63 |

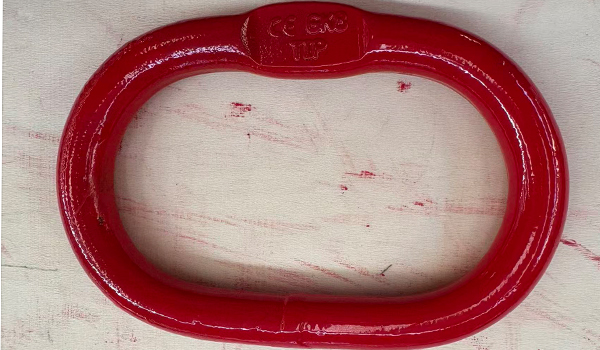

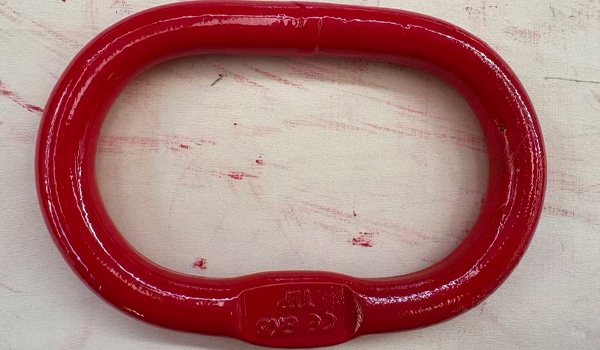

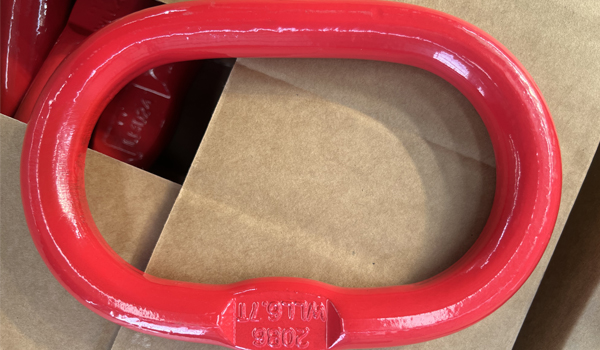

Master Link Photos:
