Aquaculture Mooring Plate / Connection Plate / Mooring Wheels /Multi-eyes Plate/Mooring Plate

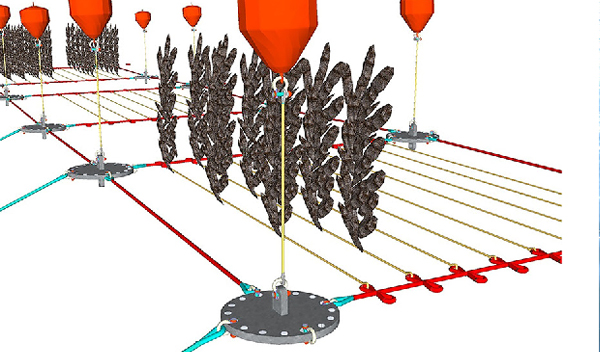

Mooring plates are the main connecting points of the whole grid structure where all components come together and are locked with shackles, the grid system, the mooring lines, the buoy chains and the cage bridles.
Plates are usually round shaped, with sufficient holes for the shackle pins to be inserted. Dimensions MBL 50T, 90T, 125T, 140T with 8, 12 and 16 connection holes. It's widly used in aquaculture cage mooring system, kelp cultivation mooring grid and other mooring system with multi mooring legs.
The mooring connection plate we produced is Q355 material, with a minimum yield strength of ≥355MPa and tensile strength ranging from 470 to 630MPa, Q355 steel offers superior load-bearing capacity and impact resistance, which is essential for mooring components that need to bear long-term tension and alternating loads in marine environments.
Two welded lugs with full penetration welding on the upper and lower, they are designed to match the overall structure of the eye plate, effectively dispersing the tension generated during mooring, reducing local stress concentration, and greatly improving the service life and safety performance of the product.
SPECIFICATION:
| TYPE | Diameter | Thickness | Number of Holes x Dia.mm | Load Per Hole | Weight |
| mm | mm | mm | Ton | KG | |
| 50T | 500 | 26 | 12 x 37 | 50 | 45 |
| 50T | 600 | 26 | 16 x 37 | 50 | 59 |
| 90T | 700 | 30 | 16 x 39 | 90 | 96 |
| 125T | 700 | 32 | 16 x 42 | 125 | 105 |
| 140T | 700 | 35 | 16 x 46 | 140 | 111 |

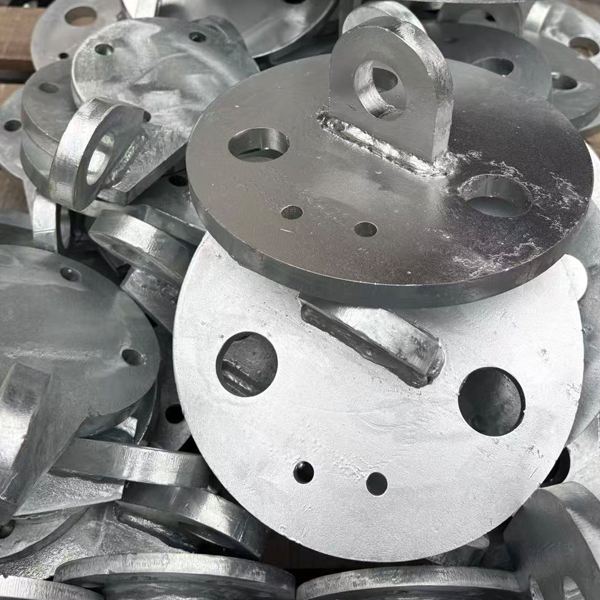

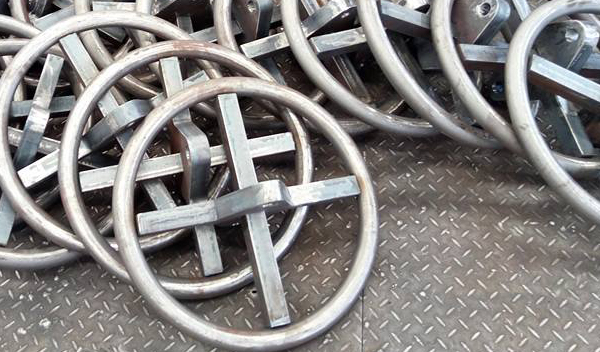

PRODUCT PHOTOS:
APPLICATION:
Offshore Mooring System, like semi-submersible platforms, buoys, sea floating solar panels.
Aquaculture Industry, like fish pen anchor points, net cage mooring grids, tension leg systems.
Docks & Harbors, like barge tie-ups, dolphin moorings, tow points.
