Aquaculture Mooring Shackle

Shackles are used in lifting and static systems as removable links to connect wire chain, chain and other fittings. Screw pin shackles are mainly used for non-permanent applications. Bolt type shackles are preferably used for long terms or permanent applications and in circumstances where the pin of shackle may rotate during loading.

Availability:

Quantity:



Inquire Add to Basket

Product Description

Mooring Shackle

Shackles are used in lifting and static systems as removable links to connect wire chain, chain and other fittings. Screw pin shackles are mainly used for non-permanent applications. Bolt type shackles are preferably used for long terms or permanent applications and in circumstances where the pin of shackle may rotate during loading.

Material: Body and pin high tensile steel, quenched and tempered.

Safety factory: 6 times WLL(Working Load Limited)

Finished: Galvanized.

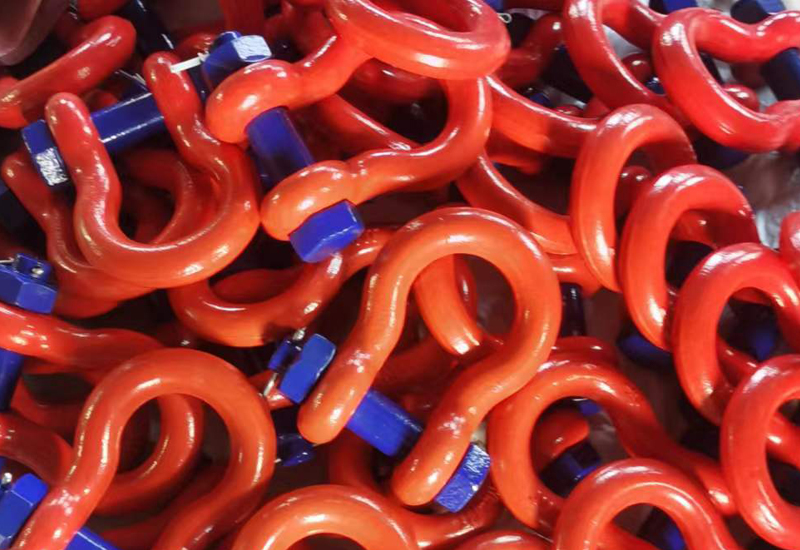

Safety Type Bow Bolt Shackles/Bow Shackle/G2130 Shackle

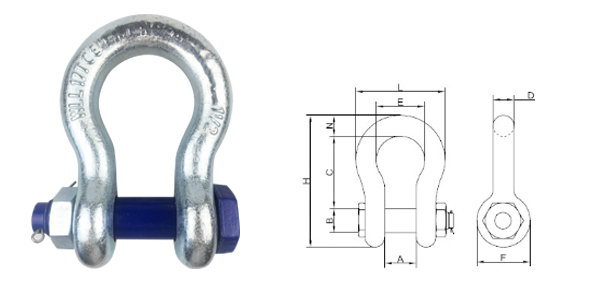

G2130 shackle

Size (in)	Load (T)	A （mm）	B （mm）	C (mm）	D （mm）	E (mm)	F （mm）	L （mm）	H （mm）	N （mm）	Weight Kg/pc
1/4	0.5	11.94	7.87	28.70	6.35	19.81	15.49	32.51	46.74	6.35	0.05
5/16	0.75	13.46	9.65	30.99	7.87	21.34	19.05	37.34	53.09	7.87	0.099
3/8	1	16.76	11.18	36.58	9.65	26.16	23.11	45.21	63.25	9.65	0.4
7/16	1.5	19.05	12.70	42.93	11.18	29.46	26.92	51.56	73.91	11.18	0.17
1/2	2	20.57	16.26	47.75	12.70	33.27	30.23	58.67	83.31	12.70	0.38
5/8	3.25	26.92	19.56	60.45	16.00	42.93	38.10	74.68	106.43	17.53	0.76
3/4	4.75	31.75	22.61	71.37	19.05	50.80	45.97	88.90	126.24	20.57	1.24
7/8	6.5	36.58	25.91	84.07	22.35	57.91	53.09	102.36	148.08	24.64	1.79
1	8.5	42.93	29.21	95.25	25.40	68.33	60.45	119.13	166.62	26.92	2.57
1-1/8	9.5	45.97	31.75	107.95	28.70	73.91	68.33	131.06	189.74	31.75	3.75
1-1/4	12	51.56	35.56	119.13	32.77	82.55	76.20	146.05	209.55	35.05	5.31
1-3/8	13.5	57.15	38.86	133.35	36.07	92.20	84.07	162.05	232.66	38.10	13.53
1-1/2	17	60.45	42.16	146.05	39.12	98.55	92.20	174.75	254.00	41.15	9.43
1-3/4	25	73.15	51.82	177.80	46.74	127.00	106.43	225.04	313.44	57.15	15.4
2	35	82.55	58.42	196.85	52.83	146.05	122.17	257.81	347.47	60.96	23.7
2-1/2	55	104.90	71.12	266.70	68.83	184.15	144.53	323.85	454.66	79.50	44.5
3	85	127.00	83.82	330.20	79.25	200.15	165.10	371.35	546.10	91.95	70.0
3-1/2	120	133.35	95.50	371.60	91.95	228.60	203.20	432.31	631.95	111.25	120.0

Bolt Type Anchor Shackles/Dee Shackle/G2150 Shackle

Size (in)	SWL (T)	A （mm）	B （mm）	C （mm）	D （mm）	E （mm）	F （mm）	G （mm）	K （mm）	M （mm）
1/4	0.5	11.94	7.87	6.35	6.35	24.64	15.75	23.11	40.39	39.62
5/16	0.75	13.46	9.65	7.87	7.87	29.21	19.05	27.18	48.51	46.23
3/8	1	16.76	11.18	9.65	9.65	36.07	23.37	32.51	58.67	55.12
7/16	1.5	19.05	12.70	11.18	11.18	41.40	26.92	37.59	67.82	63.75
1/2	2	20.57	16.26	12.70	12.70	45.97	29.97	42.16	76.96	71.12
5/8	3.25	26.92	19.56	16.00	16.00	58.93	38.10	51.82	95.50	90.42
3/4	4.75	31.75	22.61	20.57	19.05	69.85	45.97	60.96	115.06	105.41
7/8	6.5	36.58	25.91	24.64	22.35	81.28	53.34	72.64	135.38	122.43
1	8.5	42.93	29.21	25.40	25.40	93.73	60.45	82.30	150.88	136.91
1-1/8	9.5	45.97	31.75	31.75	28.70	103.38	68.07	91.69	172.21	149.86
1-1/4	12	51.56	35.56	35.05	31.75	115.06	76.20	100.84	190.50	169.93
1-3/8	13.5	57.15	38.86	38.10	35.05	127.25	84.07	112.52	210.31	183.13
1-1/2	17	60.45	42.16	41.15	38.10	136.65	91.95	123.70	229.87	196.34
1-3/4	25	73.15	51.82	53.85	44.45	162.05	106.43	147.83	278.64	236.98
2	35	82.55	58.42	59.94	53.34	184.15	127.00	173.23	323.60	264.41
2-1/2	55	104.65	71.12	66.80	66.80	238.25	144.27	204.98	377.19	344.93
3	85	127.00	82.55	88.90	76.20	279.40	165.10	217.42	428.50	384.30

Screw Collar Pin Shackle/Screw Pin Shackle/G209 Shackle

G209 Shackle

Size (in)	SWL (T)	A (mm）	B (mm）	C (mm）	D (mm）	E (mm）	F (mm）	G (mm）	H (mm）	M (mm）	P (mm）	Weight kg/pc
1/4	0.5	11.94	7.87	28.70	6.35	19.81	15.49	32.51	46.74	36.32	6.35	0.05
5/16	0.75	13.46	9.65	30.99	7.87	21.34	19.05	37.34	53.09	43.43	7.87	0.08
3/8	1	16.76	11.18	36.58	9.65	26.16	23.11	45.21	63.25	51.31	9.65	0.14
7/16	1.5	19.05	12.70	42.93	11.18	29.46	26.92	51.56	73.91	60.20	11.18	0.2
1/2	2	20.57	16.00	47.75	12.70	33.27	30.23	58.67	83.31	68.33	12.70	0.31
5/8	3.25	26.92	19.05	60.45	16.00	42.93	38.10	74.68	106.43	84.84	17.53	0.61
3/4	4.75	31.75	22.35	71.37	19.05	50.80	45.97	88.90	126.24	100.84	20.57	1.05
7/8	6.5	36.58	25.40	84.07	22.35	57.91	53.09	102.36	148.08	114.30	24.64	1.52
1	8.5	42.93	28.70	95.25	25.40	68.33	60.45	119.13	166.62	130.30	26.92	2.25
1-1/8	9.5	45.97	31.75	107.95	29.46	73.91	68.33	131.06	189.74	145.03	31.75	3.25
1-1/4	12	51.56	35.05	119.13	32.51	82.55	76.20	146.05	209.55	158.75	35.05	4.5
1-3/8	13.5	57.15	38.10	133.35	36.07	92.20	84.07	162.05	232.66	173.48	38.10	6
1-1/2	17	60.45	41.40	146.05	39.12	96.52	92.20	174.75	254.00	186.18	41.15	7.85
1-3/4	25	73.15	50.80	177.80	46.74	127.00	106.43	225.04	313.44	230.12	57.15	12.9
2	35	82.55	57.15	196.85	52.83	146.05	122.17	253.24	347.47	262.89	60.96	18.5
2-1/2	55	104.90	69.85	266.70	68.83	184.15	144.53	326.90	453.14	330.20	79.50	36.5

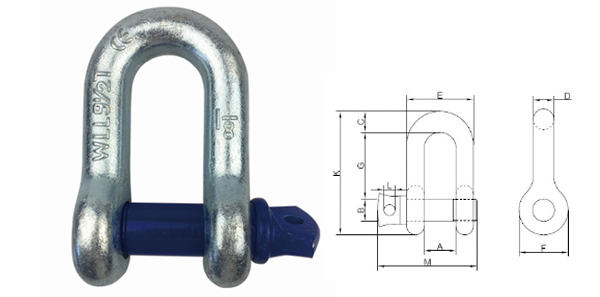

Screw Collar Chain Shackle/Screw Pin Dee Shackle/G210 Shackle

Size (in)	SWL (T)	A （mm）	B （mm）	C （mm）	D （mm）	E （mm）	F （mm）	G （mm）	K （mm）	M （mm）
1/4	0.5	11.94	7.87	6.35	6.35	24.64	15.75	24.64	40.39	36.32
5/16	0.75	13.46	9.65	7.87	7.87	29.21	19.05	27.18	48.51	43.43
3/8	1	16.76	11.18	9.65	9.65	36.07	23.37	32.51	58.67	51.31
7/16	1.5	19.05	12.70	11.18	11.18	41.40	26.92	37.59	67.82	60.20
1/2	2	20.57	16.00	12.70	12.70	45.97	29.97	42.16	76.96	68.33
5/8	3.25	26.92	19.05	16.00	16.00	58.93	38.10	51.82	95.50	84.84
3/4	4.75	31.75	22.35	20.57	19.05	69.85	45.97	60.96	115.06	100.84
7/8	6.5	36.58	25.40	24.64	22.35	81.28	53.34	72.64	135.38	114.30
1	8.5	42.93	28.70	25.40	25.40	93.73	60.45	82.30	150.88	130.30
1-1/8	9.5	45.97	31.75	31.75	28.70	103.38	68.33	91.69	172.21	145.03
1-1/4	12	51.56	35.05	35.05	31.75	115.06	76.20	100.84	190.50	158.75
1-3/8	13.5	57.15	38.10	38.10	35.05	127.25	84.07	112.52	210.31	165.86
1-1/2	17	60.45	41.40	41.15	38.10	136.65	91.95	123.70	229.87	186.18
1-3/4	25	73.15	50.80	53.85	44.45	162.05	106.43	146.81	278.64	230.12
2	35	82.55	57.15	59.94	53.34	184.15	127.00	171.96	323.60	262.89
2-1/2	55	104.65	69.85	66.80	66.80	238.25	144.27	204.98	377.19	330.20

Offshore Wide Mouth Shackle/Mooring Anchor/Fish Farming Shackle/Aquaculture Mooring Shackle

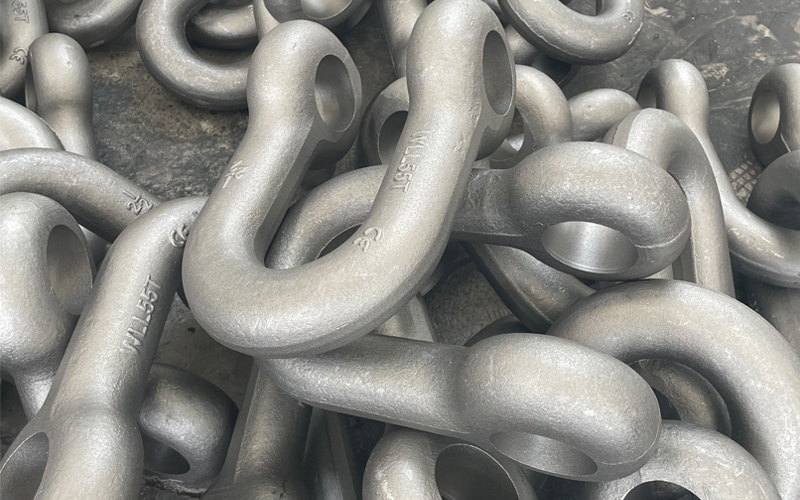

Production Process: Drop Forging

Material Grade: Superior Alloy Steel for Shackle body and Pin

Heat Treatment: Quenching and Tempering

Finish: Hot Dip Galv.

Temperature Range: -20℃ up to +200℃

Mooring shackles have a wide gap opening, extended inner height and width. The bolt is oversized with a nut with an oversized hole in the bolt to enanble easy assembling of the split pin or bolt. It is commonly used in mooring lines, in combination with chains, fiber ropes and hawsers.

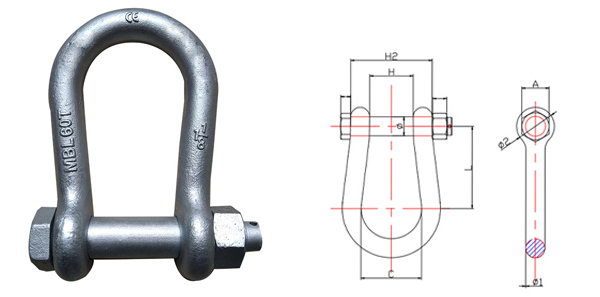

46_mooring shackle specification

Size	MBL T	Weight KG	Dimensions									Tolerance
Size	MBL T	Weight KG	A	C	D	E	F	L	K	H	d
19 x 22	30	1.4	42	97	φ19	63	φ47	101	80	152	22
22 x 25	40	2.08	52	125	φ22	68	φ54	112	96	187	25	±5%
25 x 28	50	3.05	62	135	φ25	78	φ60	128	112	205	28	±5%
28 x 32	60	4.08	70	144	φ28	92	φ66	148	126	222	31.7	±5%
32 x 35	90	6.21	82	184	φ32	120	φ76	184	146	273	35	±5%
38 x 42	140	11	94	219	φ38	146	φ92	222	170	325	41.5	±5%

Dee Shackle

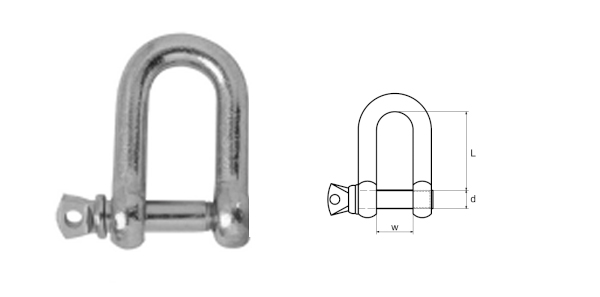

Dee shackle

d mm	w mm	L mm	Weight kg
4	8	16	0.01
5	10	19	0.013
6	12	24	0.024
8	16	32	0.051
10	20	40	0.096
12	25	48	0.179
14	28	56	0.261
16	32	64	0.424
18	36	71	0.556
20	38	76	0.747
22	44	85	1.112
25	50	95	1.652
28	56	106	2.272

Shackle Shipment
