Rope Thimble

Thimble

An insertion into a loop of fiber rope to protect the rope. Mostly the thimble is closed by splicing of the rope.

Produced in cast iron or stamped and bent plate for the protection of fibre ropes and hawsers in a connection point of a mooring line. Primarily four types of thimbles are used: K3, K2A, K2B and tubular thimbles. The thimbles are supplied with a product certificate with chemical properties.

Availability:
Quantity:
Product Description

Mooring Rope Thimble, Strong K3

Thimble is made of Mild steel and Galvanized to the thickness of 85mm on average.

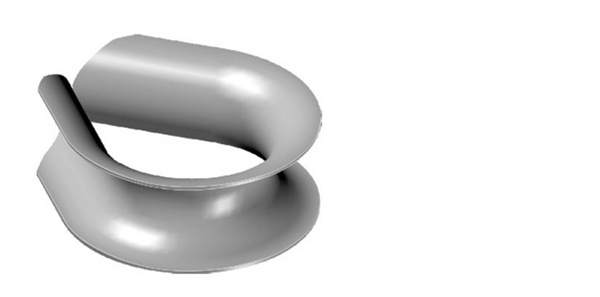

K3 Thimble


For mooring rope diameter mm

Total Length
mm

Inner Width
mm

Wall thickness
mm

>32

4''

50

3

>40

5''

59

4

>49

6''

75

5

>60

7''

75

5

>65

8''

105

8

>72

9''

110

8

Mooring Rope Thimble, Strong K3 W/Oval Ring

strong k3 thimble with master link

Material: Mild steel

Finish: Galvanized according to ISO1461

Temperature range: -20°C up to +200°C

Standard certification: NS9415

Suitable for fibre rope


For mooring rope diameter mm

MBL

40

25.8T

48

34T

56

43.2T

64

51.7T

72

85.3T


Tubular thimble

Tubular thimble


For rope diameter

mm

Total Length
mm

Inner Width
mm

Weight kg

28

215

60

2.4

32

240

65

3.1

36

280

75

4.06

40

298

85

5.95

44

308

86

6.85

48

312

88

7.2

56

33

90

7.6

64

342

94

8.3

72

450

130

20.11

80

500

150

24.85

92

550

190

30.43

Thimble Tube & Master Link

thimble tube with master link

The Thimble+ Master link has been Pre-fabricated together, providing easy handling in Splicing and is stronger than K3 Thimble during load.

Material: Mild steel

Finish: Galvanized according to ISO1461

Temperature range: -20°C up to +200°C

Standard certification: NS9415

Suitable for fibre rope


Rope Thimble Size mm

Master Link  MBL T

40

25.8

48

34

56

43.2

64

51.7

72

85.3

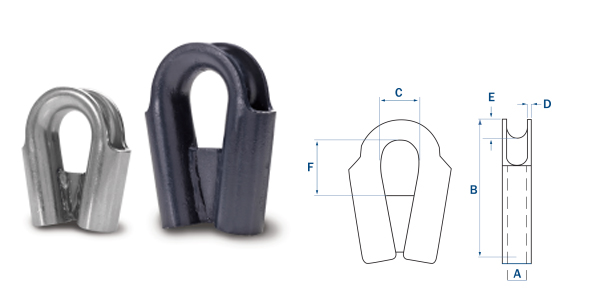

Rope Thimble Tube Gusseted/Gusseted Tubular Thimbles

Rope thimble tube gusseted

Rope Diameter

A(mm)

B(mm)

C(mm)

D(mm)

E(mm)

F(mm)

Weight(kg)

10

12

84

23

4

8

48

0.21

12

15

95

27

5

10

49

0.4

14

17

100

27

5

10

49

0.48

16

19

112

32

5

12

43

0.6

18

22

125

35

5

15

50

0.71

22

25

150

45

6.3

16

59

1.21

24

28

157

45

7

16

61

1.6

26

30

170

47

7

18

78

1.91

32

35

190

60

7

22

93

2.6

38

45

228

70

7

27

94

3.5

42

50

255

75

7

35

96

4.2

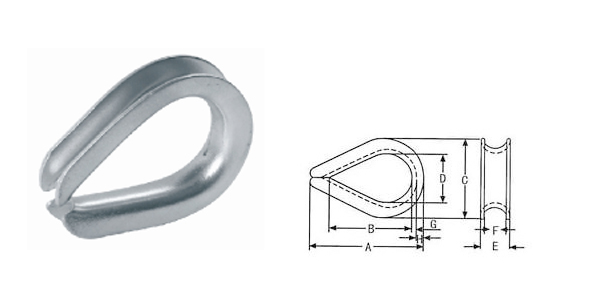

G414 Heavy Duty Thimbles

G414 Heavy Duty Thimbles

Dia. Rope
(inch)

Dimensions(inch)

Weight
(KG/PC)

A

B

C

D

E

F

G

H

1/4

2.19

1.63

1.5

0.88

0.41

0.28

0.06

0.23

0.03

5/16

2.5

1.88

1.81

1.06

0.5

0.34

0.08

0.28

0.054

3/8

2.88

2.13

2.13

1.13

0.63

0.41

0.11

0.34

0.098

7/16

3.25

2.38

2.38

1.25

0.72

0.47

0.13

0.38

0.158

1/2

3.63

2.75

2.75

1.5

0.81

0.53

0.14

0.41

0.232

9/16

3.63

2.75

2.69

1.5

0.88

0.59

0.14

0.41

0.232

5/8

4.25

3.25

3.13

1.75

0.97

0.66

0.16

0.5

0.344

3/4

5

3.75

3.81

2

1.22

0.78

0.22

0.66

0.719

7/8

5.5

4.25

4.25

2.25

1.38

0.94

0.22

0.75

0.808

1

6.13

4.5

4.94

2.5

1.56

1.06

0.25

0.88

1.427

1-1/8-1-1/4

7

5.13

5.88

2.88

1.81

1.31

0.25

1.13

1.818

1-1/4 - 1-3/8

9

6.25

6.81

3.5

2.19

1.44

0.38

1.13

3.686

1-3/8 - 1-1/2

9.06

6.5

7.13

3.5

2.56

1.56

0.5

1.13

5.885

1-5/8

11.25

8

8.13

4

2.72

1.72

0.5

1.38

7.727

1-3/4

12.19

9

8.5

4.5

2.84

1.84

0.5

1.31

8.068

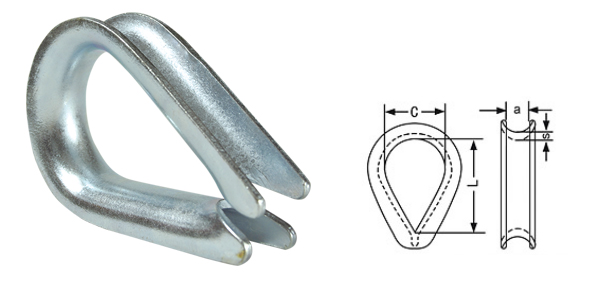

DIN 6899 Type “B” Wire Rope Thimbles

DIN 6899 Type “B” Wire Rope Thimbles

Rope
Dia.

Dimensions (mm)

Weight Each
kg/pc

A

L

C

S

2.5

3

19

12

1.6

0.005

3.5

4

21

13

1.6

0.008

4

5

23

14

1.9

0.01

5

6

25

16

2.4

0.016

6

7

28

18

2.4

0.019

7

8

32

20

2.8

0.03

9

10

38

24

3.1

0.047

11

12

45

28

3.3

0.068

13

13

48

30

3.3

0.08

13

14

51

32

3.7

0.1

15

16

58

36

3.8

0.145

16

17

61

38

4.7

0.18

17

18

64

40

4.7

0.2

18

20

72

45

5.7

0.29

20

22

80

50

5.7

0.32

22

24

90

56

6.5

0.47

24

26

99

62

6.8

0.59

26

28

112

70

8

0.8

28

30

120

75

8

1.1

30

32

128

80

8

1.23

32

34

152

92

8.5

1.56

34

36

160

100

8.5

1.76

36

38

176

110

8.5

1.92
