Marine Mooring System Triangle Plate/Delta Plate/Connection Plate

Mooring Rings and Connection Plate are generally used as central joining points for mooring systems.

WLL: 17Ton-600Ton

MBL: 85Ton-300Ton

Surface: Black Tar/ Hot Dip Galvanized

Availability:

Quantity:



Inquire Add to Basket

Product Description

Delta Plate/Triangle Plate/Three Eyes Plate/Aquaculture Steel Plate

Our produced triangle plates are forged and heat treatment, the proof load test is 2 times of SWL and breaking load is 5 times of SWL. It is widely used in marine mooring grid, connecting chains by shackles.

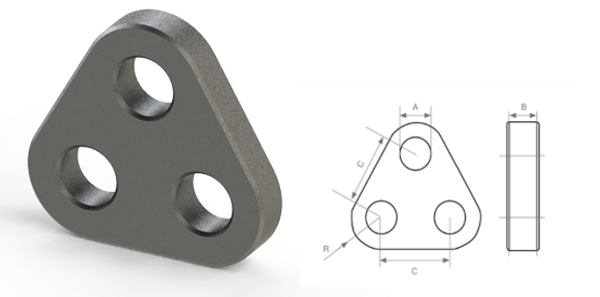

WLL (ton)	MBL (ton)	A (mm)	B (mm)	C (mm)	R (mm)	Weight (kg)
17	85	47	35	120	65	10
25	125	55	40	150	80	18
35	175	60	50	160	90	28
55	275	75	70	210	105	58
85	425	90	80	230	135	96
120	600	105	100	280	170	188
150	750	11	110	320	185	256
175	875	115	110	320	195	274
200	1000	140	120	390	215	390
250	1250	150	140	390	240	518
300	1500	160	150	420	250	617
400	2000	185	200	490	300	1170
500	2500	200	200	550	360	1619
600	3000	200	200	600	400	1972

PRODUCT PHOTOS:

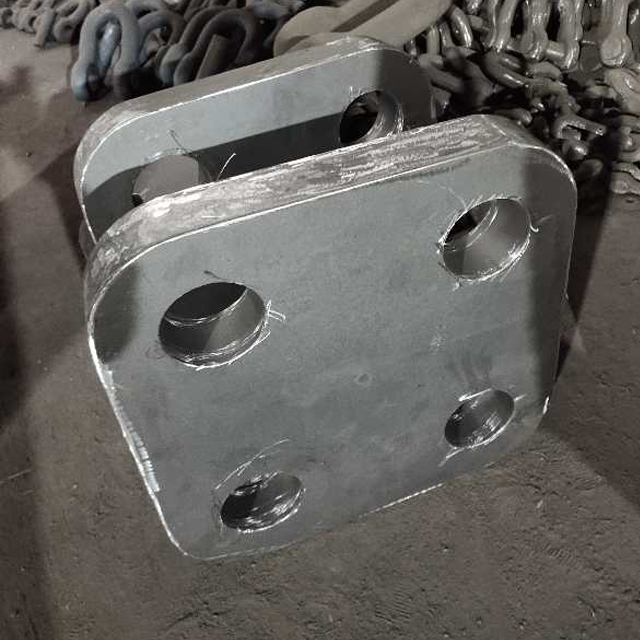

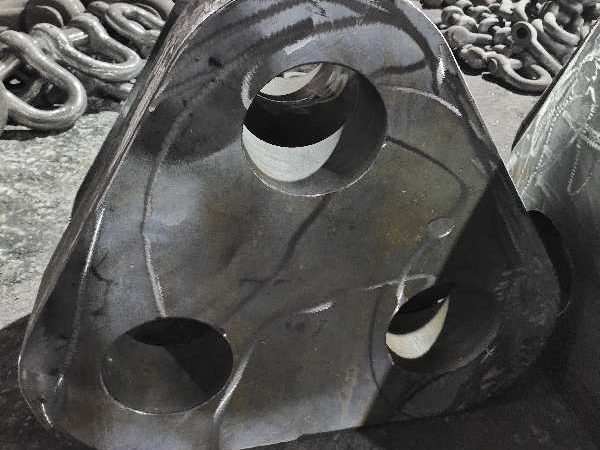

aquaculture mooring plate

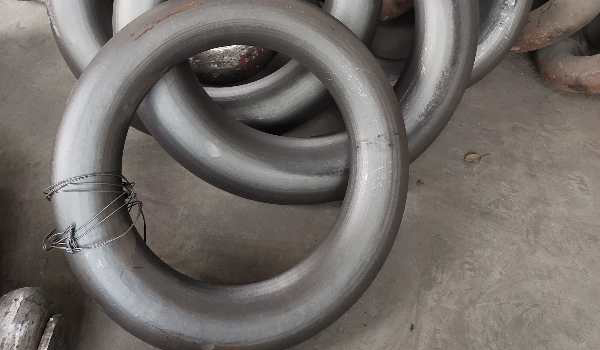

Mooring Ring

APPLICATION:

MOORING SYSTEM

marine mooring system single point mooring system triangle plate mooring plate Delta plate Connection Plate delta plate for aquaculture mooring Connection steel plate steel plate single point mooring system three eyes mooring plate

Marine Mooring System Triangle Plate/Delta Plate/Connection Plate
