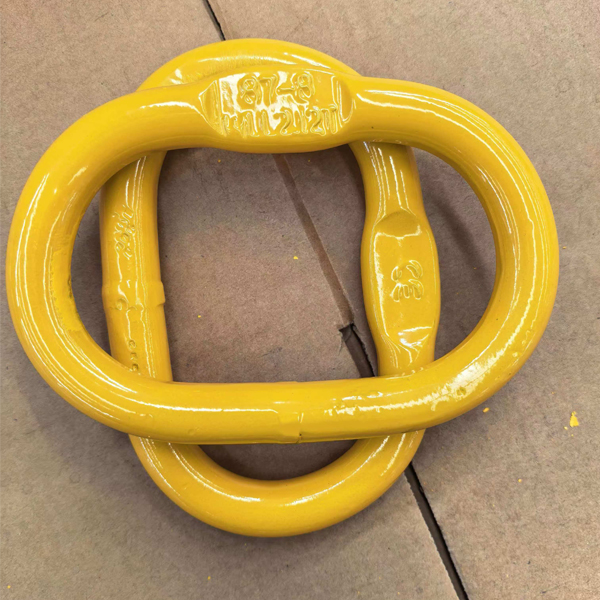

G80 US type welded master link with flat, powder coated, red or yellow color depends on client requirement. Individually proof test is 2.5 times of WLL. Oval Mooring Rings are to be mounted with chains by mooring shackles, acting as mooring line for aquaculture mooring system.
| Quantity: | |
|---|---|

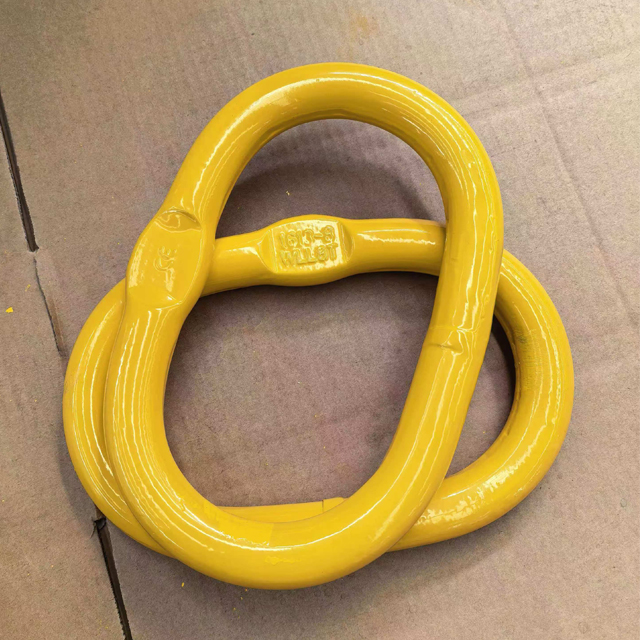

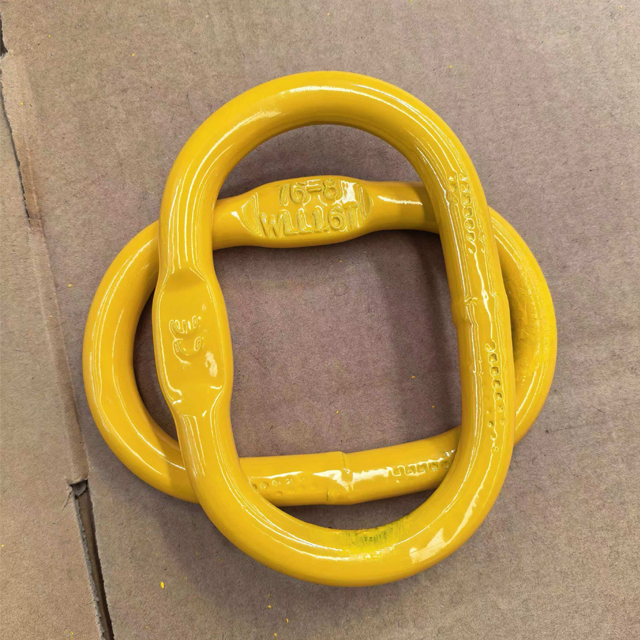

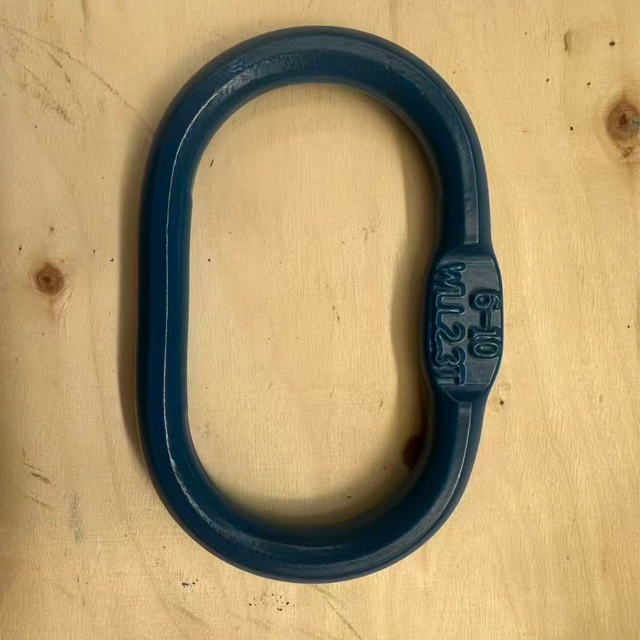

G80 European A343 Welded Master Link
---Versatile Applications in Rigging, Offshore Mooring, and Marine Aquaculture
Master link plays a critical role beyond lifting and rigging operations. It is widely used in offshore mooring systems and marine aquaculture mooring projects. It's coupled with steel thimble, we call it thimble and master link assembly. This combination protects the rope from abrasion and ensures a smooth, high‑strength termination that transfers loads efficiently.
Advantage:
1. Accommodating shackles – The generous inner space allows shackles or other connecting components to be attached freely, even under load, without jamming or excessive wear.
2. Preventing contact and friction – By providing ample clearance, the link keeps adjacent connecting elements (e.g., two shackles, or a shackle and a rope eye) from rubbing against each other. This reduces metal‑to‑metal wear, galling, and the risk of localized stress concentrations, thereby extending the service life of the entire mooring or lifting assembly.
Application:
In offshore mooring systems, master links are used to connect anchor lines to buoys, chains, or platform structures. Their high ultimate load rating ensures they can withstand the dynamic forces of waves, currents, and winds. Similarly, in marine aquaculture—such as fish farm cages or mussel longlines—strong links provide durable, corrosion‑resistant connections (often hot‑dip galvanized or stainless steel) that resist seawater corrosion while allowing easy inspection and replacement.
SIZE(mm) | WEIGHT(kg) | WLL(T) | DIMENSION(mm) | ||
A | B | D | |||
7 6-8 | 0.41 | 1.6 | 110 | 60 | 14 |
8 7-8 | 0.54 | 2.12 | 110 | 60 | 16 |
10 8-8 | 0.83 | 3.15 | 135 | 75 | 18 |
13 10-8 | 1.5 | 5.3 | 160 | 90 | 22 |
16 13-8 | 2.32 | 8 | 180 | 100 | 26 |
18 16-8 | 3.96 | 11.2 | 200 | 110 | 32 |
20 18-8 | 6.34 | 14 | 260 | 140 | 36 |
22 20-8 | 8.97 | 17 | 300 | 160 | 40 |
26 22-8 | 12.83 | 21.2 | 340 | 180 | 45 |
32 26-8 | 16.57 | 31.5 | 350 | 190 | 50 |
36 32-8 | 23.3 | 45 | 400 | 200 | 56 |
40 36-8 | 32.1 | 56 | 430 | 220 | 63 |
