450mm HDPE Cage Bracket Integrated Injection Type
Our produced integrated injection mold HDPE cage bracket is made from 100% virgin HDPE, offering excellent corrosion resistance, UV stabilization, and durability in both freshwater and saltwater applications. It is easy to assemble and expand. The structure is designed for quick installation on-site, allowing for flexible configuration from small-scale farms to large industrial projects.
Our model 450mm integrated bracket is suitable for two floating pipes fish cages with Φ450mm HDPE pipes, and it is designed with two handrail pipes with Φ140mm pipes. Unlike traditional roto-molded bracket, our injection molded design ensures unparalleled wall thickness consistency and weldless joints, significantly reducing the risk of leakage or structural fatigue. It can withstand harsh weather conditions, strong currents, and UV radiation, providing a stable and secure living environment for marine species such as Atlantic salmon, sea bass, and cobia.
The Specification of HDPE Bracket:
| HDPE Square Floating cage frame specifications | |||||
| Length*Width(m) | Floating Pipe Diameter(mm) | Handrial Pipe Diameter(mm) | Upright Diameter(mm) | Bracket Hole Diameter(mm) | Distance of the Brackets(m) |
| 3*3-6*6 | 250 | 125 | 125 | 250 | 1.5-2 |
| 6*6-10*10 | 315 | 125 | 125 | 315 | 1.5-2 |
| 6*6-10*10 | 315 | 125 | 140 | 315 | 1.5-2 |
| 10*10-20*20 | 400 | 140 | 160 | 400 | 1.5-2 |
| 15*15-25*25 | 450 | 140 | 160 | 450 | 1.5-2 |
| 20*20-30*30 | 500 | 160 | 180 | 500 | 1.5-2 |
| HDPE Round Floating Cage Frame Specifications | |||||
| Circumference(m) | Floating Pipe Diameter(mm) | Handrial Pipe Diameter(mm) | Upright and Tee Size(mm) | Bracket Hole Diameter(mm) | Distance of the Brackets(m) |
| 40-60 | 250 | 125 | 125,125/125 | 250 | 1.5-2 |
| 60-80 | 315 | 125 | 125,125/125 | 315 | 1.5-2 |
| 60-80 | 315 | 125 | 140,140/125 | 315 | 1.5-2 |
| 80-120 | 400 | 140 | 160,160/140 | 400 | 1.5-2 |
| 100-140 | 450 | 140 | 160,160/140 | 450 | 1.5-2 |
| 120-160 | 500 | 160 | 180,180/160 | 500 | 1.5-2 |
| HDPE Round Floating Cage Frame Specifications (2rd Type) | |||||
| Circumference(m) | Floating Pipe Diameter(mm) | Handrial Pipe Diameter(mm) | Upright and Tee Size(mm) | Bracket Hole Diameter(mm) | Distance of the Brackets(m) |
| 40-60 | 250 | 110 | 125 | 250 | 1.5-2 |
| 60-80 | 315 | 110 | 125 | 315 | 1.5-2 |
| 80-120 | 400 | 125 | 160 | 400 | 1.5-2 |
| 100-140 | 450 | 125 | 160 | 450 | 1.5-2 |
| 120-160 | 500 | 140 | 180 | 500 | 1.5-2 |

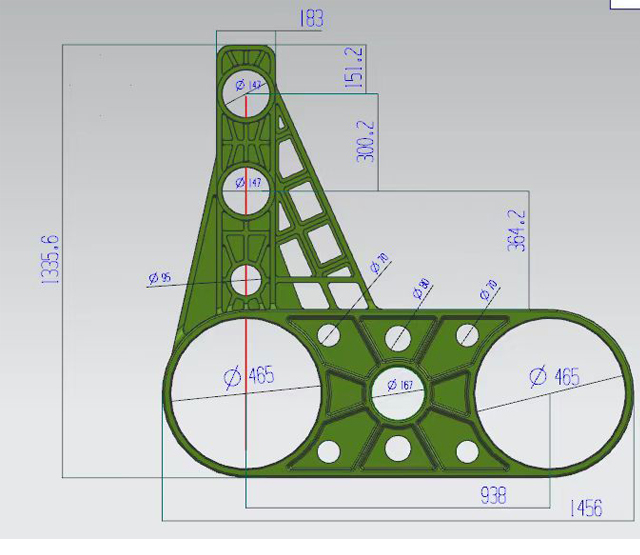

The drawing of mold 450mm Integrated Cage Bracket

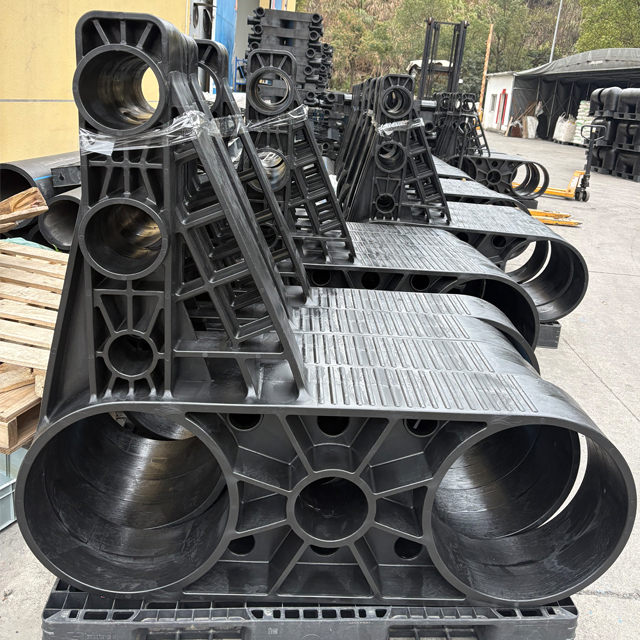

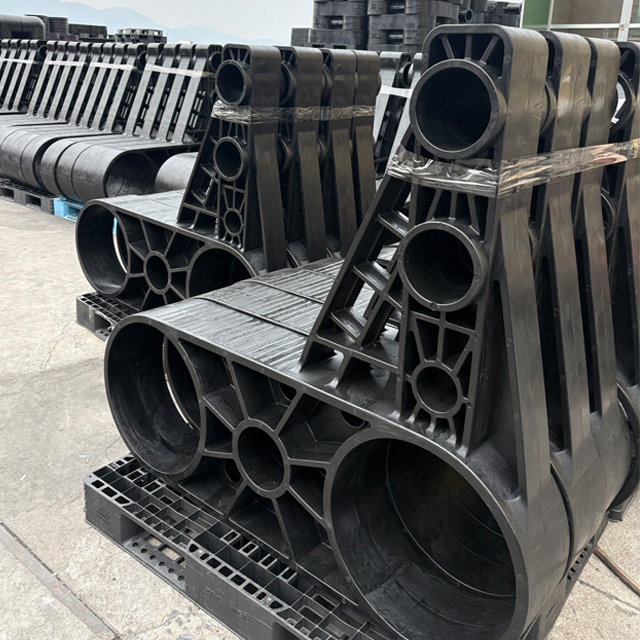

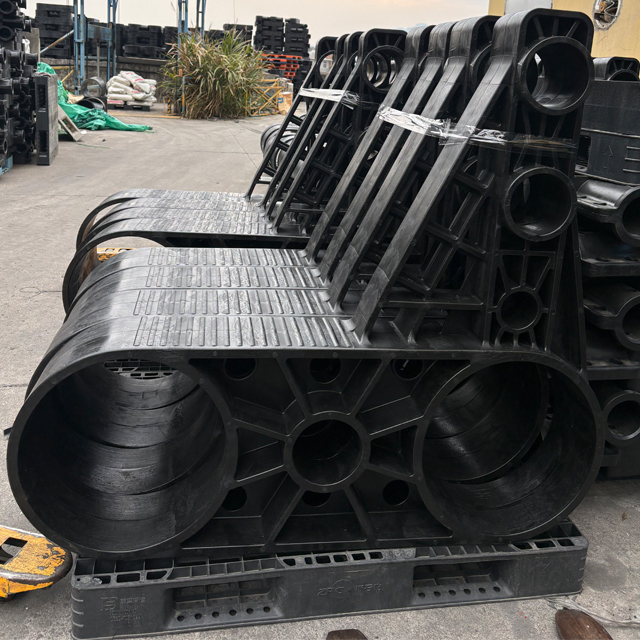

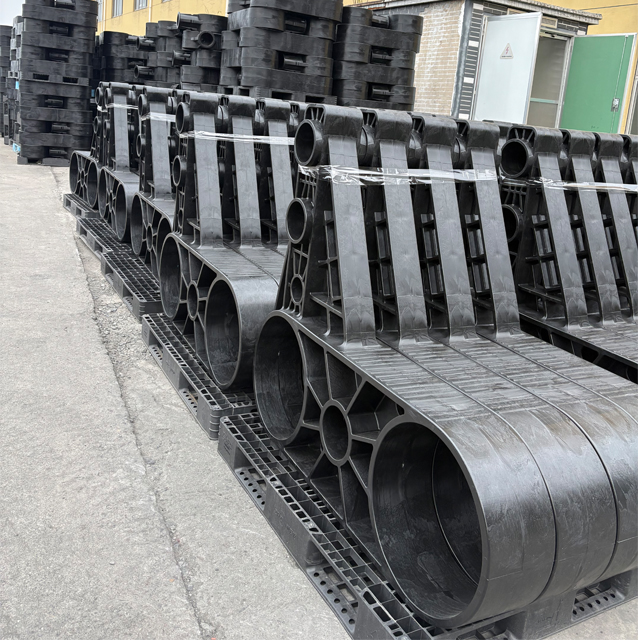

The Photos of 450mm Integrated Cage Bracket
