Injection Mold HDPE Fish Cage Brackets
200/250/315/350/400/450/500mm
High Strength/Good Toughness/Anti-aging/Corrosion resistance/Extended service life/Environmental protection and no pollution.
Our produced 315mm Double Holes HDPE Bracket, Injection Type, can be matched with two sizes of upright pipe,
140mm or 125mm Upright Pipe(choose as your cage design)
140/125mm or 125/110mm Tees
125mm or 110mm Handrail Pipe
Stopper/Pins/Walkway padels(Whole sets of fittings are supplied, you can do fish cage assembly work by purchaseing HDPE pipe locally, which is more ecnonomic)

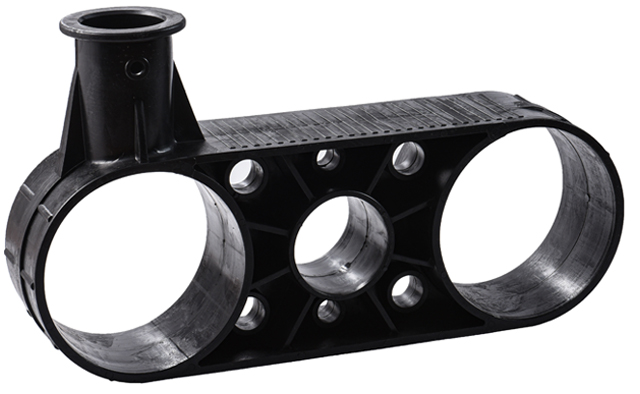

315mm Double Holes Injection HDPE Fish Cage Bracket Size & Photos:
Double Holes HDPE Cage Bracket Asssembly Structure:
Floating Fish Cage Built:
| HDPE Square Floating cage frame specifications | |||||
| Length*Width(m) | Floating Pipe Diameter(mm) | Handrial Pipe Diameter(mm) | Upright Diameter(mm) | Bracket Hole Diameter(mm) | Distance of the Brackets(m) |
| 3*3-6*6 | 250 | 125 | 125 | 250 | 1.5-2 |
| 6*6-10*10 | 315 | 125 | 125 | 315 | 1.5-2 |
| 6*6-10*10 | 315 | 125 | 140 | 315 | 1.5-2 |
| 10*10-20*20 | 400 | 140 | 160 | 400 | 1.5-2 |
| 15*15-25*25 | 450 | 140 | 160 | 450 | 1.5-2 |
| 20*20-30*30 | 500 | 160 | 180 | 500 | 1.5-2 |
| HDPE Round Floating Cage Frame Specifications | |||||
| Circumference(m) | Floating Pipe Diameter(mm) | Handrial Pipe Diameter(mm) | Upright and Tee Size(mm) | Bracket Hole Diameter(mm) | Distance of the Brackets(m) |
| 40-60 | 250 | 125 | 125,125/125 | 250 | 1.5-2 |
| 60-80 | 315 | 125 | 125,125/125 | 315 | 1.5-2 |
| 60-80 | 315 | 125 | 140,140/125 | 315 | 1.5-2 |
| 80-120 | 400 | 140 | 160,160/140 | 400 | 1.5-2 |
| 100-140 | 450 | 140 | 160,160/140 | 450 | 1.5-2 |
| 120-160 | 500 | 160 | 180,180/160 | 500 | 1.5-2 |
| HDPE Round Floating Cage Frame Specifications (2rd Type) | |||||
| Circumference(m) | Floating Pipe Diameter(mm) | Handrial Pipe Diameter(mm) | Upright and Tee Size(mm) | Bracket Hole Diameter(mm) | Distance of the Brackets(m) |
| 40-60 | 250 | 110 | 125 | 250 | 1.5-2 |
| 60-80 | 315 | 110 | 125 | 315 | 1.5-2 |
| 80-120 | 400 | 125 | 160 | 400 | 1.5-2 |
| 100-140 | 450 | 125 | 160 | 450 | 1.5-2 |
| 120-160 | 500 | 140 | 180 | 500 | 1.5-2 |
HDPE Cage Bracket Production Photos:
Application Cases:
Our factory is a professional deep-sea aquaculture cage fittings manufacturer. We focus on injection molding parts production, product labeling, assembly and packaging, product design (development of new products or improvement of existing products) and mold manufacturing development. The products covers norwegian cage I-frame, uprights, pedal, Tee and Elbow and other fittings. Also, we are a manufacturer to help produce custom injection molded HDPE cage brackets with dimensions and features specific to client's operations.
Our factory has passed the ISO9001 Quality Management System certification, and we are also the first factory of TAIZHOU to have 6000 tons of injection molding machines.
The 315mm Norwegian-style framework is a cost-effective and reliable solution for 20–30m net cages, offering durability, ease of use, and proven performance. However, site-specific factors (e.g., wave intensity, depth) should be evaluated to confirm suitability.
