Injection Molding Fish Cage Bracket
200/250/315/350/400/450/500mm
High Strength/Good Toughness/Anti-aging/Corrosion resistance/Extended service life/Environmental protection and no pollution.
400mm double collars hdpe bracket
160mm upright pipe
140mm handrail pipe
160/140mm Tees

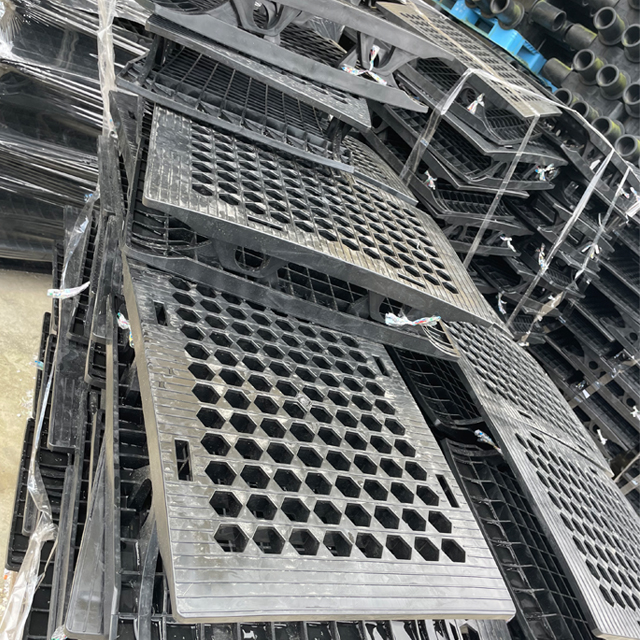

Stoppers, pins and walkway padel are completed supplied.
Our factory is a professional deep-sea aquaculture cage fittings manufacturer. We focus on injection molding parts production, product labeling, assembly and packaging, product design (development of new products or improvement of existing products) and mold manufacturing development.
The products covers norwegian cage I-frame, uprights, pedal, Tee and Elbow and other fittings. Custom injection molded HDPE cage brackets with dimensions and features specific to client's operations are available.
400mm Double Holes HDPE Bracket Size:
The Specification of HDPE Bracket:
HDPE Square Floating cage frame specifications | |||||
Length*Width(m) | Floating Pipe Diameter(mm) | Handrial Pipe Diameter(mm) | Upright Diameter(mm) | Bracket Hole Diameter(mm) | Distance of the Brackets(m) |
3*3-6*6 | 250 | 125 | 125 | 250 | 1.5-2 |
6*6-10*10 | 315 | 125 | 125 | 315 | 1.5-2 |
6*6-10*10 | 315 | 125 | 140 | 315 | 1.5-2 |
10*10-20*20 | 400 | 140 | 160 | 400 | 1.5-2 |
15*15-25*25 | 450 | 140 | 160 | 450 | 1.5-2 |
20*20-30*30 | 500 | 160 | 180 | 500 | 1.5-2 |
HDPE Round Floating Cage Frame Specifications | |||||
Circumference(m) | Floating Pipe Diameter(mm) | Handrial Pipe Diameter(mm) | Upright and Tee Size(mm) | Bracket Hole Diameter(mm) | Distance of the Brackets(m) |
40-60 | 250 | 125 | 125,125/125 | 250 | 1.5-2 |
60-80 | 315 | 125 | 125,125/125 | 315 | 1.5-2 |
60-80 | 315 | 125 | 140,140/125 | 315 | 1.5-2 |
80-120 | 400 | 140 | 160,160/140 | 400 | 1.5-2 |
100-140 | 450 | 140 | 160,160/140 | 450 | 1.5-2 |
120-160 | 500 | 160 | 180,180/160 | 500 | 1.5-2 |
HDPE Round Floating Cage Frame Specifications (2rd Type) | |||||
Circumference(m) | Floating Pipe Diameter(mm) | Handrial Pipe Diameter(mm) | Upright and Tee Size(mm) | Bracket Hole Diameter(mm) | Distance of the Brackets(m) |
40-60 | 250 | 110 | 125 | 250 | 1.5-2 |
60-80 | 315 | 110 | 125 | 315 | 1.5-2 |
80-120 | 400 | 125 | 160 | 400 | 1.5-2 |
100-140 | 450 | 125 | 160 | 450 | 1.5-2 |
120-160 | 500 | 140 | 180 | 500 | 1.5-2 |
Double Collar Cage Bracket /2 Holes HDPE Bracket Details:
Our Fish Cage in The Sea:
Waysail specializes in sustainable and environmentally marine and aquaculture solutions, based on many years of experience in the supply and installation of all types of mooring systems, from aquaculture farms to single boat moorings.
