Injection Molding Fish Cage Bracket
200/250/315/350/400/450/500mm
High Strength/Good Toughness/Anti-aging/Corrosion resistance/Extended service life/Environmental protection and no pollution.

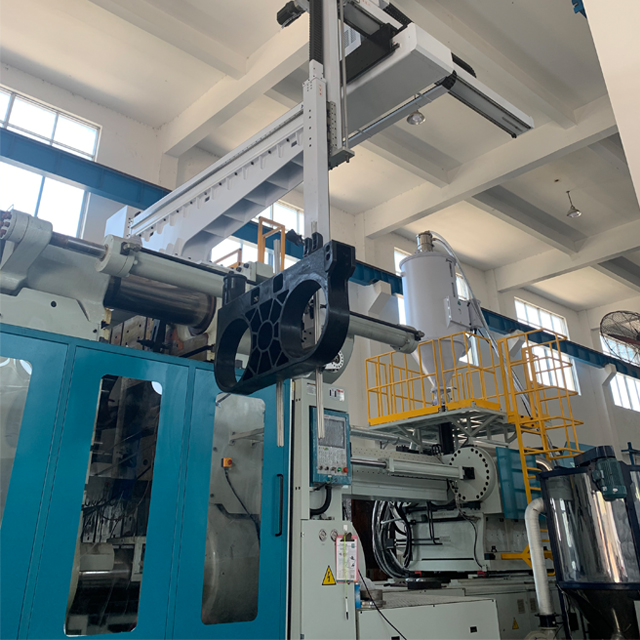

Our produced hdpe bracket is injection molded, it is more robust and high strength than that of roto-moulding type. 450mm double collars hdpe bracket is used for aquaculture cage with double floating pipes of OD450mm. The fitted upright pipe size is 160mm, and 160/140mm Tees. We provide the whole set of components for client installation work, bracket, tees, stoppers and pins.
Our factory is a professional deep sea aquaculture cage fittings manufacturer. We focus on injection molding parts production, product labeling, assembly and packaging, product design (development of new products or improvement of existing products) and mold manufacturing development. The products covers norwegian cage I-frame, uprights, pedal, Tee and Elbow and other fittings. Welcome to contact us for any fish cage building projects.
The Specification of HDPE Bracket:
| HDPE Square Floating cage frame specifications | |||||
| Length*Width(m) | Floating Pipe Diameter(mm) | Handrial Pipe Diameter(mm) | Upright Diameter(mm) | Bracket Hole Diameter(mm) | Distance of the Brackets(m) |
| 3*3-6*6 | 250 | 125 | 125 | 250 | 1.5-2 |
| 6*6-10*10 | 315 | 125 | 125 | 315 | 1.5-2 |
| 6*6-10*10 | 315 | 125 | 140 | 315 | 1.5-2 |
| 10*10-20*20 | 400 | 140 | 160 | 400 | 1.5-2 |
| 15*15-25*25 | 450 | 140 | 160 | 450 | 1.5-2 |
| 20*20-30*30 | 500 | 160 | 180 | 500 | 1.5-2 |
| HDPE Round Floating Cage Frame Specifications | |||||
| Circumference(m) | Floating Pipe Diameter(mm) | Handrial Pipe Diameter(mm) | Upright and Tee Size(mm) | Bracket Hole Diameter(mm) | Distance of the Brackets(m) |
| 40-60 | 250 | 125 | 125,125/125 | 250 | 1.5-2 |
| 60-80 | 315 | 125 | 125,125/125 | 315 | 1.5-2 |
| 60-80 | 315 | 125 | 140,140/125 | 315 | 1.5-2 |
| 80-120 | 400 | 140 | 160,160/140 | 400 | 1.5-2 |
| 100-140 | 450 | 140 | 160,160/140 | 450 | 1.5-2 |
| 120-160 | 500 | 160 | 180,180/160 | 500 | 1.5-2 |
| HDPE Round Floating Cage Frame Specifications (2rd Type) | |||||
| Circumference(m) | Floating Pipe Diameter(mm) | Handrial Pipe Diameter(mm) | Upright and Tee Size(mm) | Bracket Hole Diameter(mm) | Distance of the Brackets(m) |
| 40-60 | 250 | 110 | 125 | 250 | 1.5-2 |
| 60-80 | 315 | 110 | 125 | 315 | 1.5-2 |
| 80-120 | 400 | 125 | 160 | 400 | 1.5-2 |
| 100-140 | 450 | 125 | 160 | 450 | 1.5-2 |
| 120-160 | 500 | 140 | 180 | 500 | 1.5-2 |
Double Collar Cage Bracket /2 Holes HDPE Bracket Details:
Our Fish Cage in The Sea:
