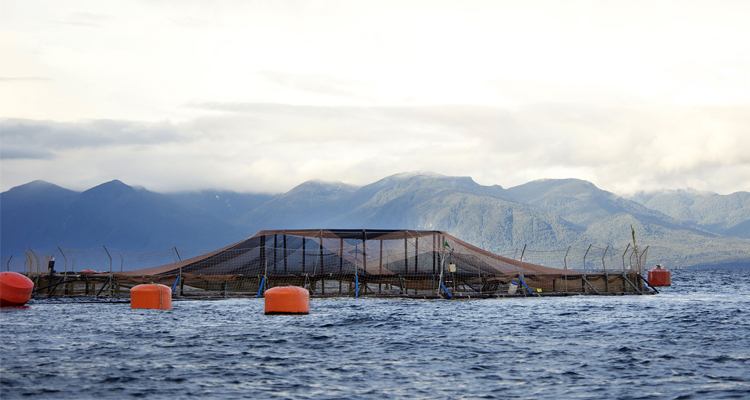

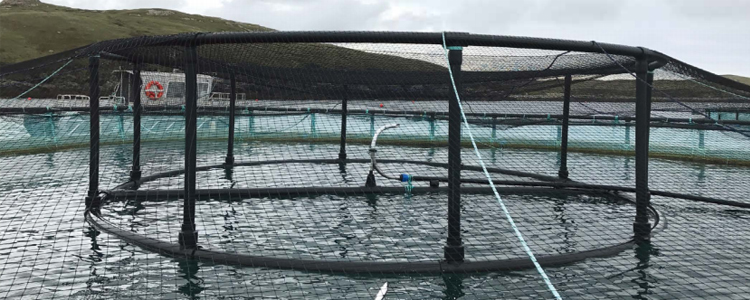

Fish Cage Bird Net Support
---Customisation Available Upon Request---
Specification:
Circumference (m) | 30m | 42m |
Diameter (m) | 9.6 | 13.4 |
Flotation Pipe Size (mm) | 180 | 180/250 |
Number of Uprights | 10 | 14 |
Upright Pipe Size | 125mm | 125mm |
Top Ring Pipe Size | 125mm | 125mm |
Height | 2.6meters | 3meters |
Weight | 180kg | 560/1300kg |
Customisation available upon request.
Parts:
Φ180mm flotation ring filled with polyestyreene(EPS) infill
Φ125mm Top Ring
Φ125mm Upright Pipe

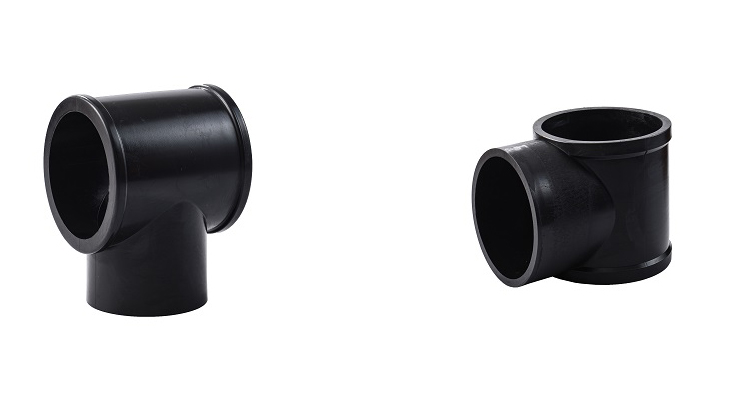

Electrofusion fittings used at all junction points to construct the bird net support wheel
Optional centeral cross bar c/w internal bulkheads
Optional fabricated rotary spreader attachment point
Advantage:
The larger size helps to increase the surface area supporting the top net thus reducing any point loading.

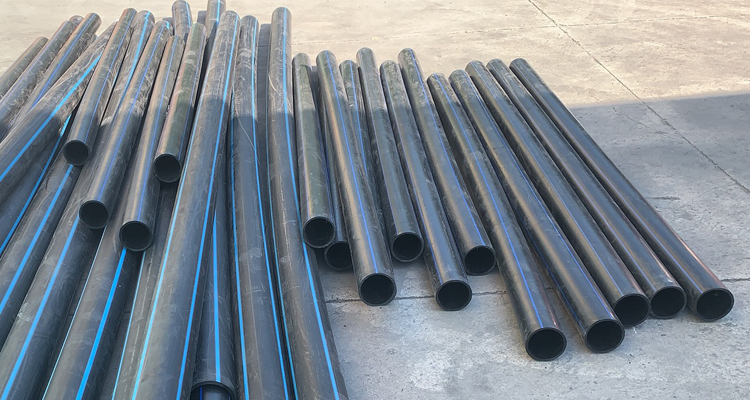

Main flotation ring made from Φ180mm PE pipe.
Minimal movement makes them ideal for large diameter pens
Utilises electrofusion process and control
Modular design with the option to increase circumference
Pratical Application:

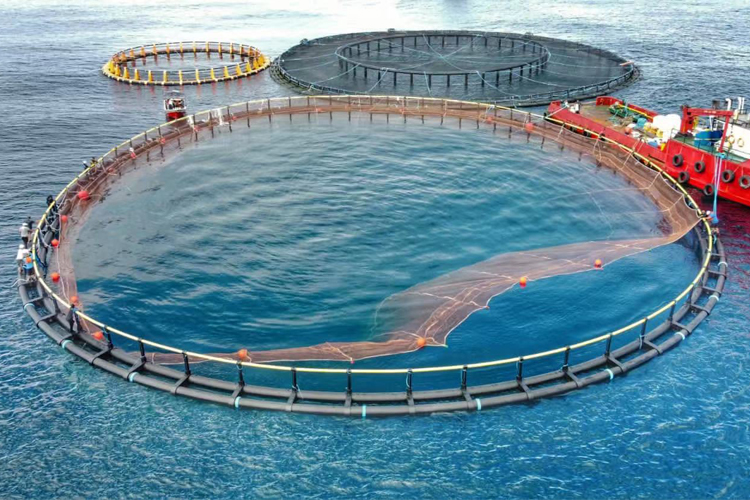

Waysail specializes in sustainable and environmentally marine and aquaculture solutions, based on many years of experience in the supply and installation of all types of mooring systems, from aquaculture farms to single boat moorings.
