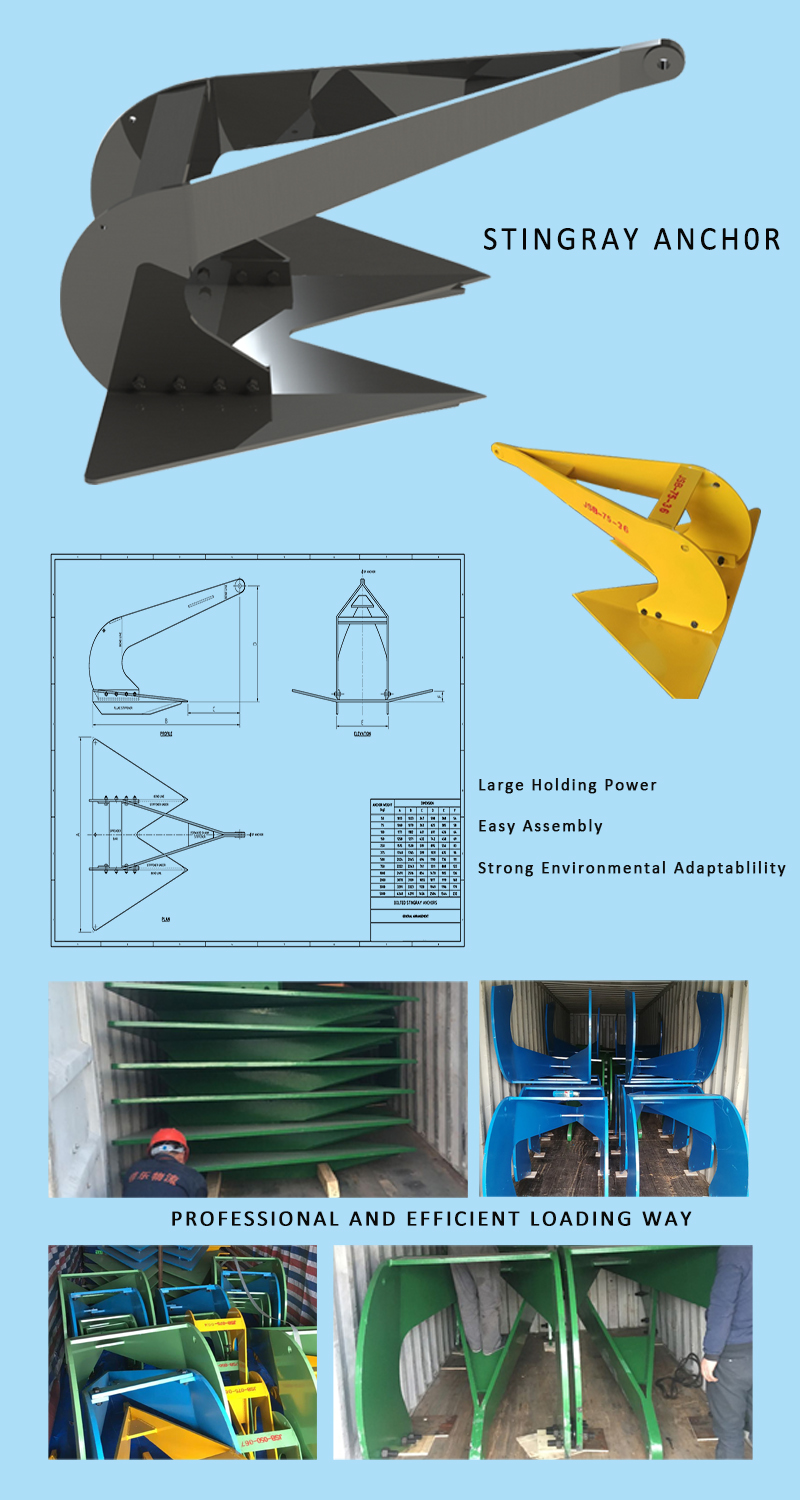

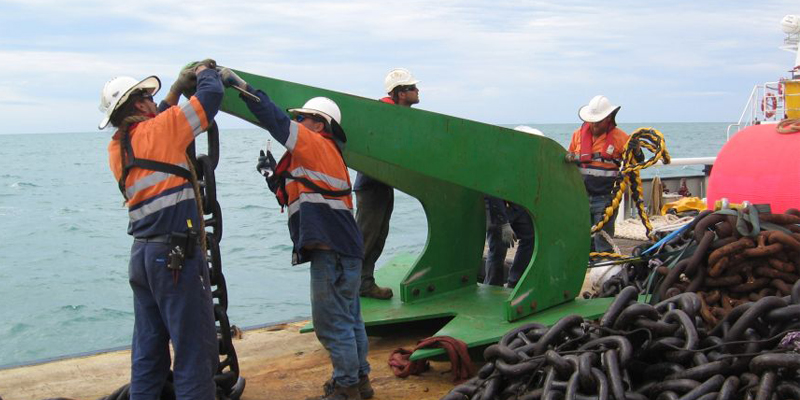

Stingray Anchor
---Super High Performance Anchor---
Description:
The Stingray Anchor is a specialized mooring system designed for marine environments, particularly tailored to meet the unique demands of aquaculture operations. Its name derives from its biomimetic design, inspired by the flat, wide body and efficient hydrodynamics of a stingray. It has advantage of large holding power, easy assembly and strong environmental adaptability and so on.
Stingray anchor is commonly used in Marine Cyclone, Aquaculture Fish Farm, Seaweed and Oyster mooring projects, and it has been thoroughly tested in the aquaculture industry and proved to be highly durable and strong. Its holding power is more than 40 times of its weight, so if you'd like to have a high holding power anchor in your project, stingray anchor is a better choices.
We did destructive test for 1000kg, 1500kg stingray anchors when the first time we supplied this anchor in ten years ago. And, we will do proof load test and MT for every batch of stingray anchor order before delivery. Besides, we have experience on packing and loading of stingray anchor, avoiding goods damage and save the shipping cost.
Specification:
| Weight (kg) | Sand | Medium Clay | Silt |
| (tonnes) | (tonnes) | (tonnes) | |
| 10 | 2.39 | 1.85 | 1.34 |
| 25 | 4.95 | 3.83 | 2.77 |
| 50 | 8.59 | 6.65 | 4.8 |
| 75 | 12.03 | 9.09 | 6.57 |
| 100 | 14.91 | 11.54 | 8.34 |
| 150 | 20.58 | 15.93 | 11.51 |
| 175 | 23.26 | 18.01 | 13.01 |
| 250 | 30.89 | 23.92 | 17.27 |
| 375 | 42.64 | 33.01 | 23.84 |
| 500 | 53.6 | 41.5 | 29.97 |
| 750 | 7399 | 57.28 | 41.37 |
| 1000 | 93 | 72 | 52 |
| 1500 | 128.37 | 99.39 | 71.78 |
| 2000 | 161.36 | 124.93 | 90.22 |
| 3000 | 222.74 | 172.44 | 124.54 |
| 4000 | 279.98 | 216.76 | 156.55 |
| 5000 | 334.32 | 258.83 | 186.93 |
Application in Aquaculture:
Function: Anchors floating cages for species like salmon, seabass, or tuna.
Advantage: Provides stability in deep-water or high-current zones, preventing cage displacement during storms.
Case Study: Used in Norwegian salmon farms to secure cages in fjords with soft, muddy bottoms.
Function: Mooring lines for shellfish (e.g., oysters, mussels) or seaweed farms.
Advantage: Lightweight design simplifies installation and retrieval, reducing labor costs.
Function: Deployed in seasonal aquaculture operations or rotational sites.
Advantage: Easy to reposition using standard workboats, adapting to changing environmental conditions.
Function: Part of redundant anchoring systems in typhoon-prone regions (e.g., Southeast Asia).
Advantage: High holding capacity reduces risk of infrastructure loss during extreme weather.

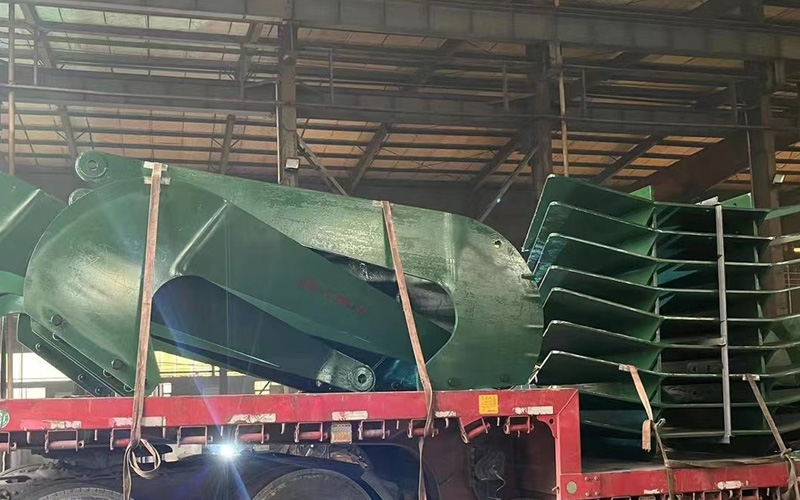

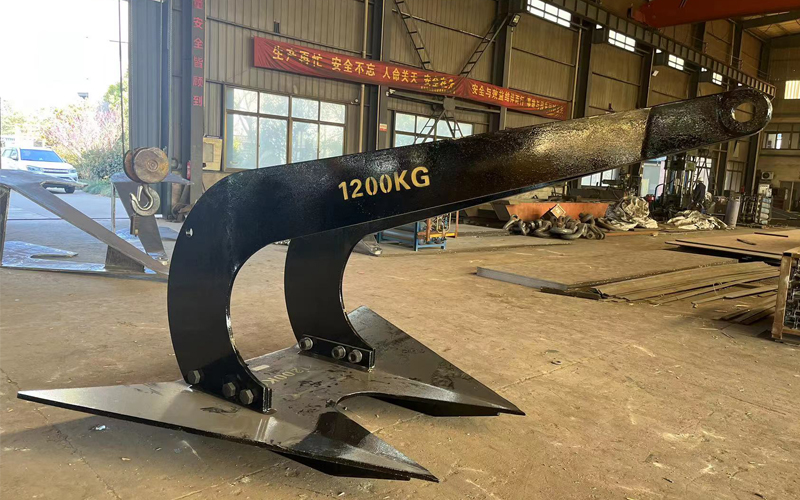

Production of Stingray Anchor:

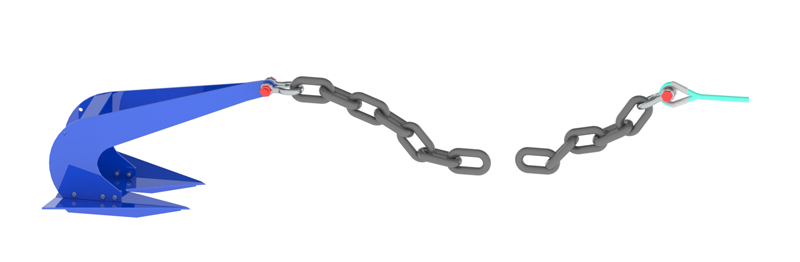

Application in Cyclone Mooring System:

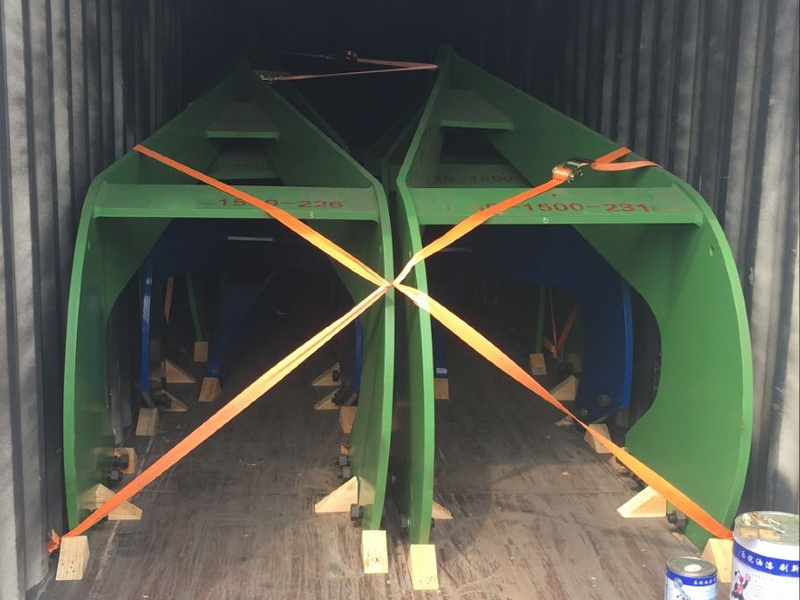

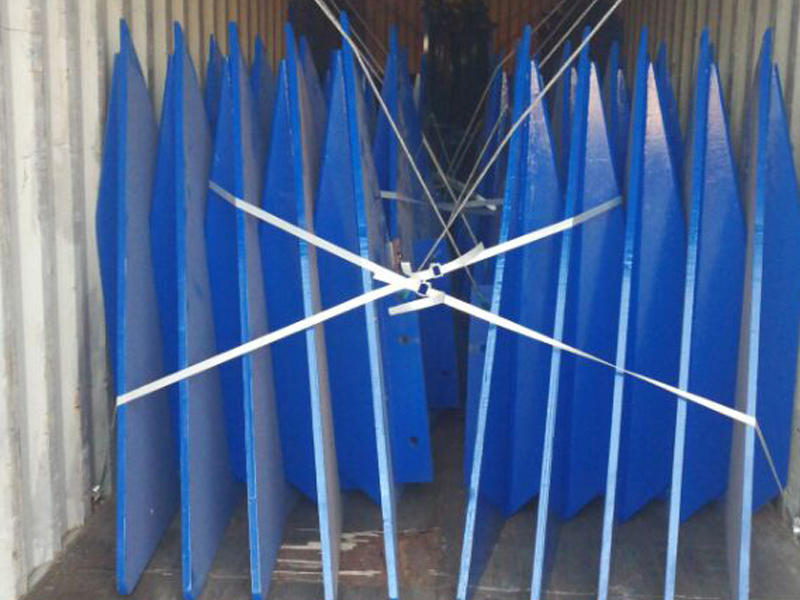

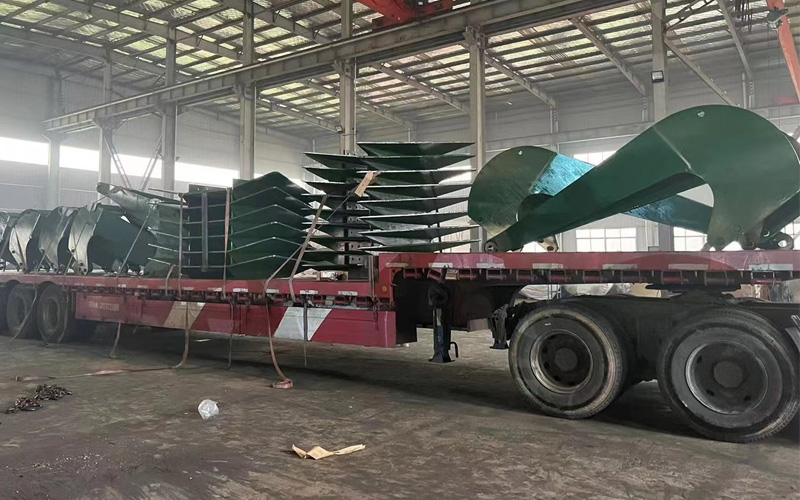

Effective Loading Way:
Waysail company started as a marine equipment supplier, and has developed into a supplier of supplying turnkey solutions for marine and aquaculture customers. We can design and supply whole sets of mooring system (anchor, anchor chains, mooring buoy, ropes, connection hardware), Cage & Net and relative equipment for aquaculture use. Welcome to contact us to make a cage and mooring system design for your cage fish farming aquaculture, sales@qdwaysail.com.
