Mooring chains grade 40 chain is produced in alloy steel, bending and welding. Long Link is according to DIN763/DIN5685C. Waysail specializes in produce and supply fishing farming equipment and accessory, such as, galvanzied chain, mooring shackle, thimbles, swivels, mooring plate, dual shank anchor and etc.
| Quantity: | |
|---|---|
Long Link HDG Chain, G40
Mooring chains grade 40 chain is produced in alloy steel, bending and welding. Long Link is according to DIN763/DIN5685C. Waysail specializes in produce and supply fishing farming equipment and accessory, such as, galvanzied chain, mooring shackle, thimbles, swivels, mooring plate, dual shank anchor and etc.

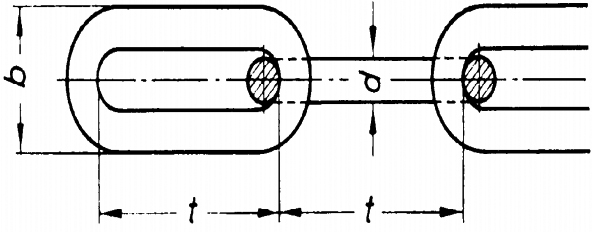

Specification:
| d | t | b | KG/M |
| 10MM | 65 | 38 | 1.8 |
| 11MM | 72 | 41 | 2.2 |
| 13MM | 82 | 50 | 3 |
| 16MM | 100 | 62 | 4.5 |
| 19MM | 125 | 75 | 6.6 |
| 22MM | 126 | 82 | 8.5 |
| 25MM | 145 | 88 | 11 |
| 28MM | 152 | 93 | 14 |
| 30MM | 159 | 102 | 16.2 |
| 35MM | 170 | 120 | 22.5 |
