Deepsea Float ABS Buoy, Depth Sphere, Net Trawling Buoy

ABS buoys, also called depth sphere, trawl float are high density, no leakage, impact resistance, aging resistance.
Ribbed reinforced product surface
Heavy-duty twin eye rope hold design for vertical or horizontal use
High Break-resistent
Wide range of working depth from 1 meter-2000 meter
High water pressure resistance range from 1 bar-200 bars
Custom colors and sizes are available.
Availability:
Quantity:
Product Description

                                                                     Deepsea Float ABS Buoy/ Depth Sphere / Trawl Net Float


Main Characteristic:

  • Central hole series and lifting eyes series

  • High density, no leakage, impact resistance, aging resistance.

  • Ribbed reinforced product surface.

  • Heavy-duty twin eye rope hold design for vertical or horizontal use.

  • High Break-resistent

  • Wide range of working depth from 1 meter-2000 meter.

  • High water pressure resistance range from 1 bar-200 bars.

  • Custom colors and sizes are available.


Our Produced ABS Floats:

High technology content, injection type, high density, no leakage; The surface of the float is smooth, and it is not easy for Marine algae to attach and grow, which can reduce the resistance of floating in the water; The performance is stable and reliable, the process can withstand high pressure and pressure sudden change, excellent resilience, strong wear resistance, large tensile strength, lengthening the service cycle, reducing the user's use cost.


All these characteristics enable it suitable for ocean fishing, deep-sea aquaculture, deep-sea trawling, custom nets and other fishery production. This buoy can be used in deepsea moring system, acting as a floater to float the connections, between rope and chain, near seabottom, so it can avoid any sea bottom touching of the ropes.


Applications in Aquaculture:

  • Deep-Sea Fish Farms: Provides reliable buoyancy for cages/nets in offshore environments with strong currents.

  • Shellfish & Seaweed Cultivation: Supports vertical or horizontal lines in suspended systems.

  • Mooring Grids: Multiple buoys create stable networks for large-scale operations.

    ABS buoys are widely used in offshore aquaculture projects, such as salmon farms in Norway or seaweed farms in Asia, where their reliability in deep-sea conditions has proven critical to operational success.


The Specification of Our Produced ABS Floats:

型号Product 直径Diameter 直径Diameter 孔直径
Hole Dia.(mm)
重量weight
(kg)
浮力Buoyancy(kg) 耐水深 Water depth resistant(m) CBM/100PCS
体积/100个
Center Hole Series
穿心浮球
5.5" 135mm 16mm 0.26kg 1.04kg 200m 0.246
0.46kg 0.84kg 500m
0.66kg 0.64kg 800m
6" 150mm 19mm 0.34kg 1.46kg 200m 0.337
160mm 1kg 0.8kg 500m
160mm 1.18kg 0.64kg 800m
7" 175mm 19mm 0.46kg 2.44kg 200m 0.535
8" 200mm 20mm 0.56kg 3.74kg 200m 0.8
0.72kg 3.58kg 300m
1.72kg 2.58kg 1200m
9" 225mm 23mm 0.8kg 5.3kg 200m 1.139
1kg 5.1kg 300m
10" 250mm 25mm 0.86kg 7.54kg 200m 1.562
1.14kg 7.26kg 250m
250mm 1.4kg 7kg 400m
240mm 2.86kg 4.64kg 800m
11" 280mm 25mm 1.4kg 10.4kg 200m 2.192
1.8kg 10kg 400m
2.3kg 9.5kg 500m
2.8kg 9kg 600m
3.3kg 8.5kg 800m
6.1kg 5.7kg 1200m
12" 300mm 25mm 1.5kg 13.1kg 200m 2.7
1.78kg 12.82kg 300m
2.2kg 12.4kg 400m
2.7kg 11.9kg 500m
3.9kg 10.7kg 800m
14" 360mm 38mm 2.2kg 23kg 150mm 4.665
3.2kg 22kg 300m
6.2kg 19kg 800m

16" 400mm 45mm 3.3kg 31.2kg 200m 6.4

18" 450mm 45mm 3.6kg 45.5kg 200m 9.11

20" 500mm 50mm 6.3kg 61.1kg 200m 12.5
Two ears Series
双耳浮球
5.5" 135mm 12mm 0.2kg 1.1kg 200m 0.246
8" 200mm 22mm 0.4kg 3.9kg 200m 0.8
10" 250mm 19mm 0.9kg 7.5kg 100m 1.562
1.1kg 7.3kg 200m
11" 280mm 19mm 1.2kg 10.6kg 200m 2.192
12" 300mm 22mm 1.5kg 13.1kg 200m 2.7
3.68kg 10.92kg 800m
12.5" 320mm 13mm 1.3kg 16.4kg 200m 3.27
14'' 360mm 25mm 2.2kg 23kg 200m 4.665
5.62kg 19.5kg 800m
16" 400mm 25mm 3.1kg 31.4kg 200m 6.4
18" 450mm 25mm 3.6kg 45.5kg 200m 9.11
20" 500mm 32mm 5.8kg 61.6kg 200m 12.5
Double-headed ear series
对耳浮球
10" 240mm 14mm 1kg 6.5kg 200m 1.562
11" 280mm 20mm 1.3kg 10.5kg 200m 2.192
12" 300mm 21mm 1.4kg 13.2kg 200m 2.7
12.5'' 320mm 26mm 3.55kg 15kg 600m 3.276
14'' 360mm 30mm 2.3kg 22.9kg 200m 4.665
Four Eyes Series
四耳浮球
11" 280mm 16mm 1.1kg 10.7kg 200m 2.1
1.7kg 10.1kg 400m
12" 300mm 20mm 1.4kg 13.2kg 200m 2.7
1.9kg 12.7kg 300m
2.1kg 12.5kg 400m
13" 330mm 24mm 1.5kg 16.2kg 200m 3.593
18'' 450mm 27mm 3.7kg 45.4kg 200m 9.112
Two holes Series
双孔浮球
8" 200mm 16mm 0.88kg 3.4kg 300m 0.8

Product Exhibition:

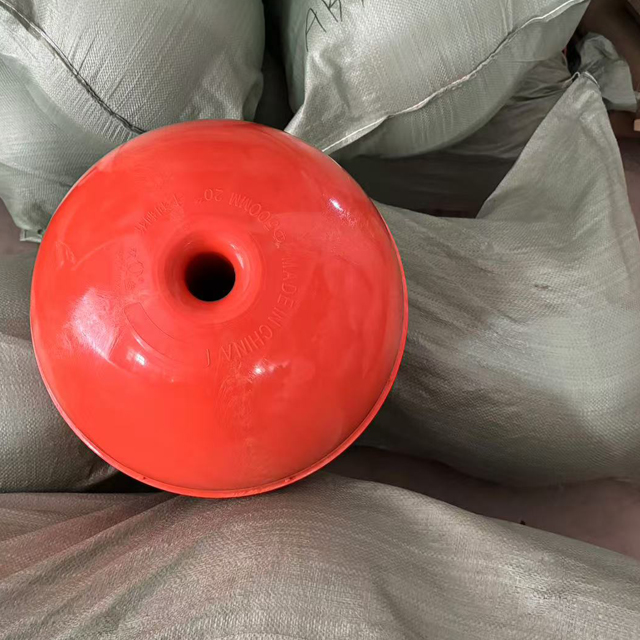

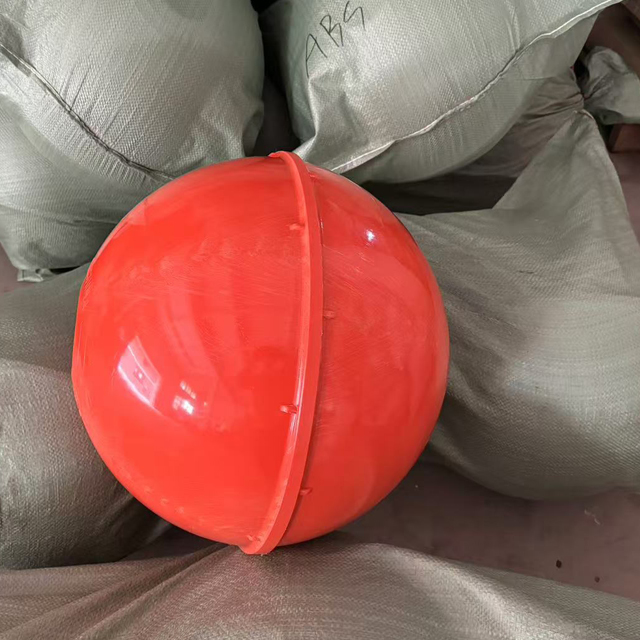

ABS BUOY

hard plastic buoyABS plastic buoy

floating buoy
