Waysail Deliver Mooring Systems For Offshore (Marine) Photovoltaics.

Home » Blogs » Marine PV Mooring System » Waysail Deliver Mooring Systems For Offshore (Marine) Photovoltaics.

Waysail Deliver Mooring Systems For Offshore (Marine) Photovoltaics.

Views: 126 Author: Site Editor Publish Time: 2022-11-30 Origin: Site

Mooring Systems For Offshore (Marine) Photovoltaics

Waysail just deliver 4sets of mooring systems for Offshore (Marine) Photovoltaics, the mooring line is compelte with screw anchor, open link anchor chains, polyester ropes and connection shackles.

Screw anchors are made by S355J2 material, galvanized thickness upto 125micron.

screw anchor

screw mooring anchor

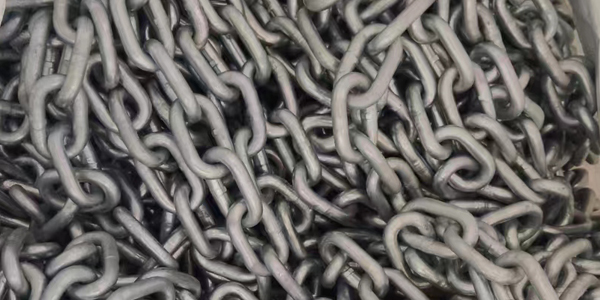

Open Link Chain are galvanized surface with swivel pieces on one end.

open link chain

galvanized open link anchor chain

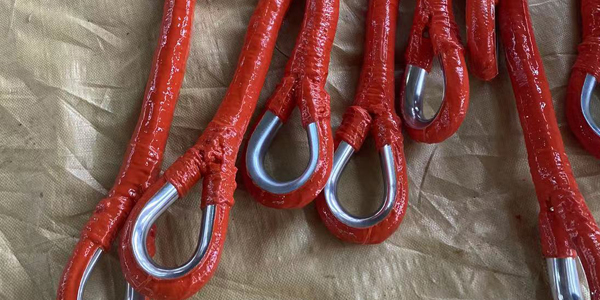

Polyester Ropes are 12 strands double braided polyester ropes with PU coated, one end with galvanied thimble, the other end with SS316 thimbles.

polyester ropes

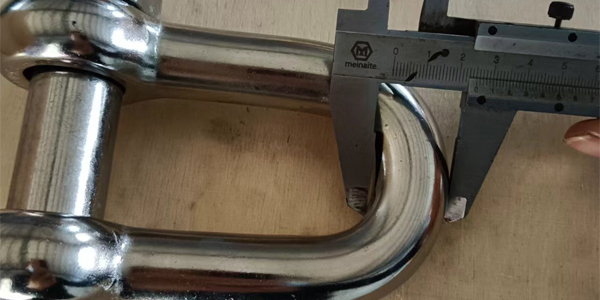

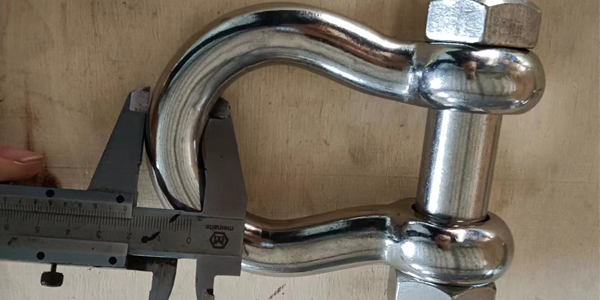

Bolt Type Bow Shackle and D Shackles with SS316 material for connecting.

SS316 D Shackle
