Polyester Mooring Ropes for a European Floating Solar Project

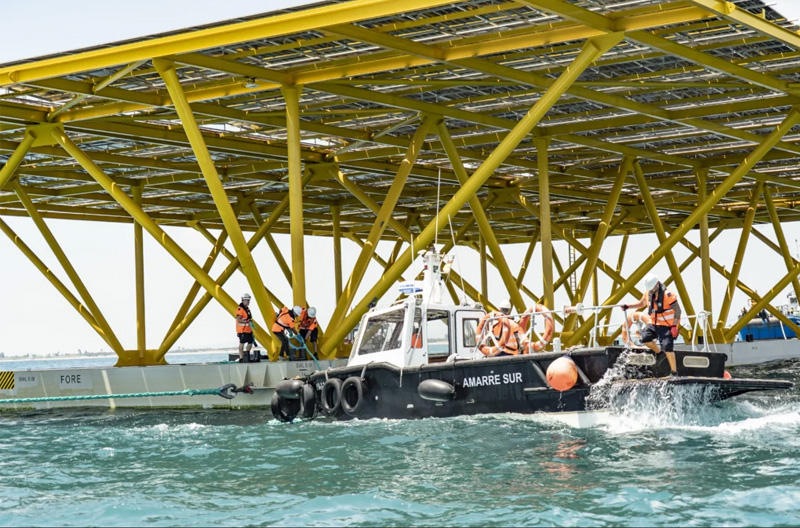

In a marine floating PV project, the mooring rope is therefore not simply a length of rope connecting the platform to an anchor. It is a load-bearing part of the complete station-keeping system. For a European floating solar project, Qingdao Waysail Ocean Technology Co., Ltd. supplied polyester mooring ropes for integration into the project's anchoring and mooring arrangement. The project required a marine-suitable synthetic rope solution that could work with the planned line geometry, connection hardware and floating-array layout.

The customer required polyester mooring ropes for the floating solar mooring system. Polyester is commonly considered for marine mooring applications where a combination of strength, flexibility and controlled elongation is required. Compared with a very low-stretch rope, polyester can provide a more compliant response under changing environmental loads. This characteristic may help the mooring system absorb movement through the line rather than transferring every load variation directly to the platform connection. The actual response depends on rope construction, line length, pretension, water depth, line angle and the complete mooring layout.

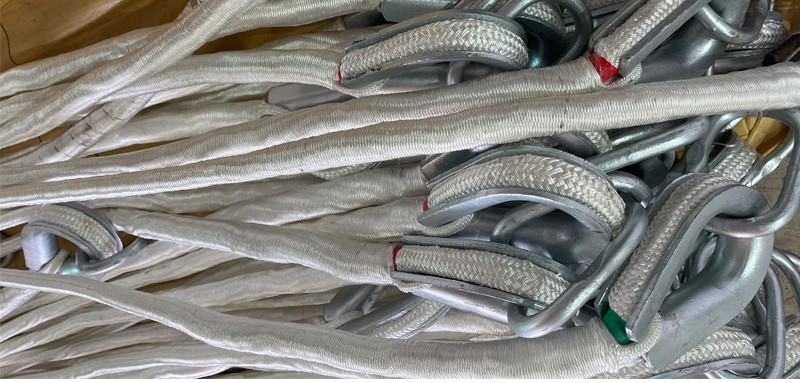

A polyester mooring rope performs as part of an assembly. The rope diameter, eye termination, thimble, shackle, chain connection and platform attachment must be dimensionally and mechanically compatible.

Before delivery, the rope specification should be checked against:

• Shackle bow and pin dimensions.

• Thimble size and eye geometry.

• Connection-plate hole diameter and edge clearance.

• Required bending radius.

• Chafe-protection requirements.

• Installation sequence and access conditions.

This interface review helps reduce the risk of receiving a rope that meets a nominal load requirement but cannot be installed correctly with the rest of the system.

Qingdao Waysail Ocean Technology Co., Ltd. supplies polyester mooring ropes and related marine mooring components for project-based floating solar applications. Share your array layout, water depth, mooring arrangement and rope requirements with our team to discuss a suitable supply scope.
