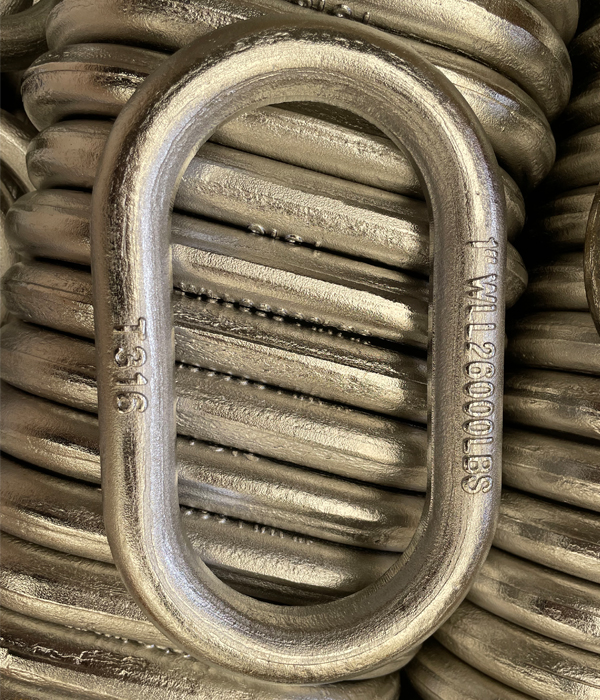

SS316 Stainless Steel Forged Master Link
Forged master link will be assemblied with thimble, and connected with chains by shackles, acting as mooring lines for marine mooring system. SS316 master link will be used at the end of system, which side is to be connected with floating structure on the sea surface, since this material has super corrosion resistance.
Specification:
| Size | IL (inch) | IW(inch) | WLL(ib) | WT(ib) |
| 3/8'' | 3'' | 1.5'' | 1500 | 0.35 |
| 1/2'' | 5'' | 2.5'' | 2000 | 0.84 |
| 5/8'' | 6'' | 3'' | 2800 | 1.61 |
| 3/4'' | 6.5'' | 3.25'' | 3750 | 2.26 |
| 1'' | 7'' | 3.5'' | 8000 | 4.94 |
| 1-1/4'' | 8.75'' | 4.38'' | 11800 | 9.65 |

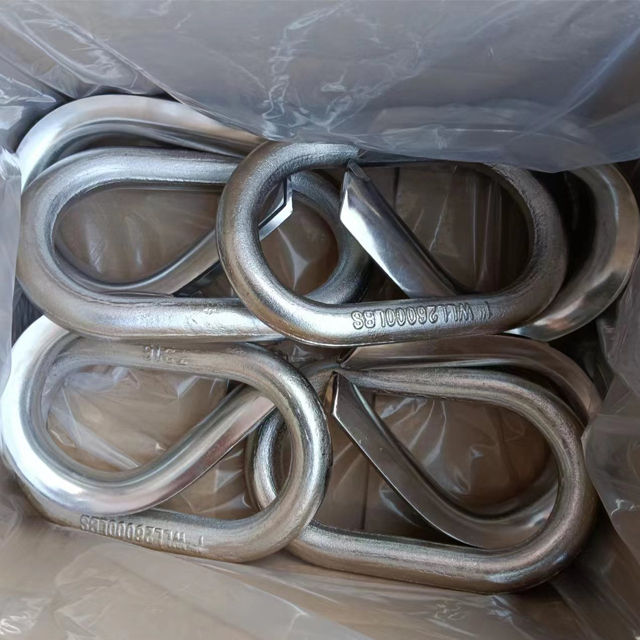

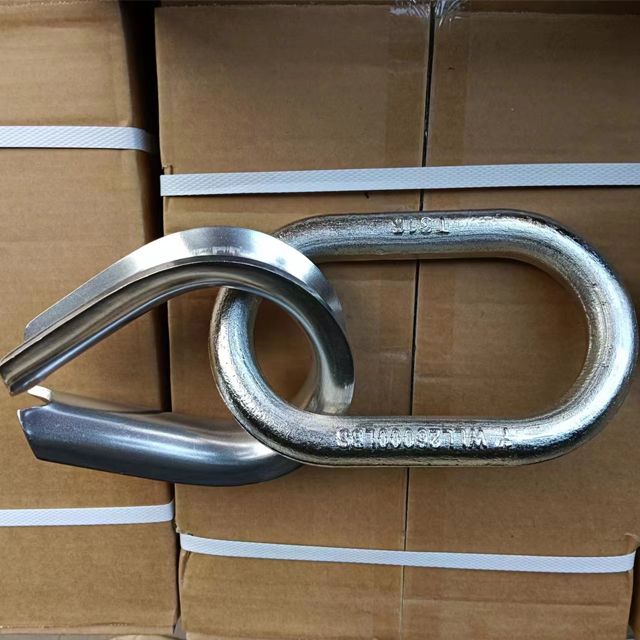

Delivery Photos:

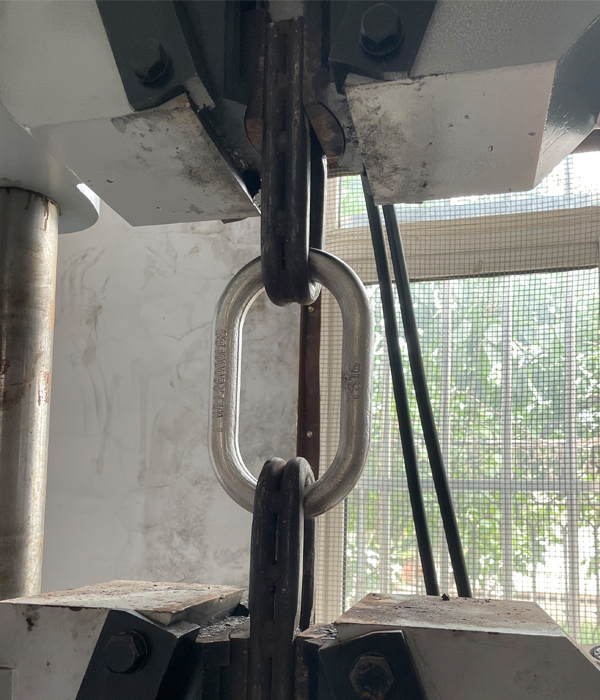

Application:
